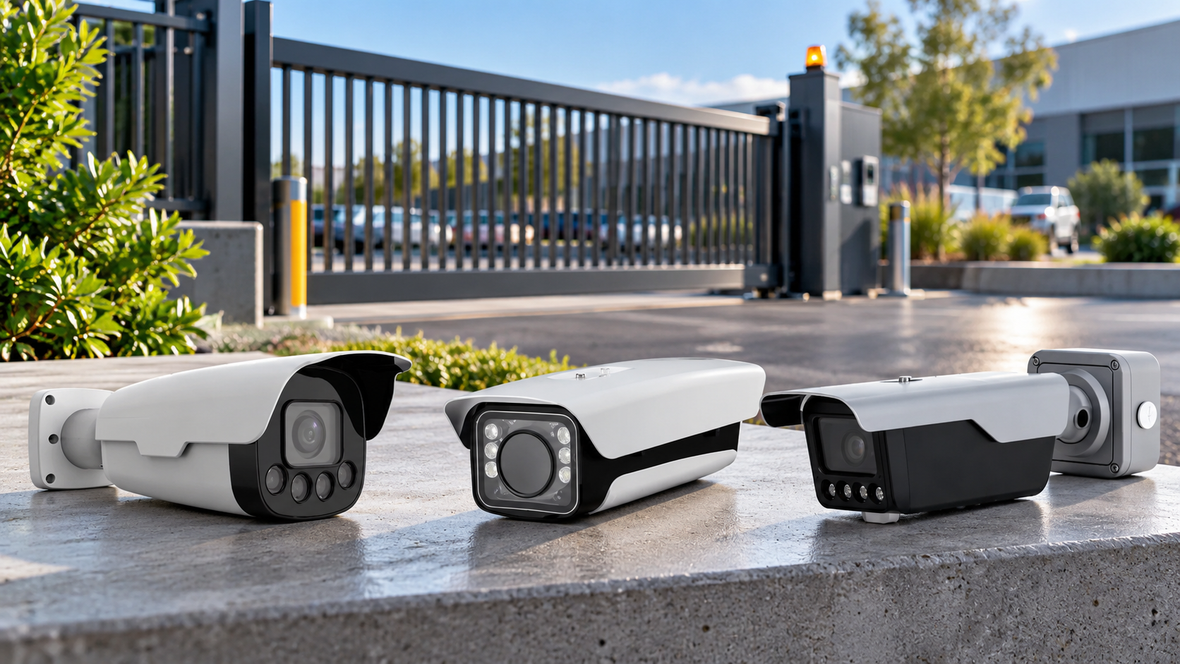

Three commercial CCTV cameras displayed in front of a secure vehicle entrance gate at a modern business premises.

ANPR Camera Buying Guide: Choosing Cameras for Gates, Car Parks and Vehicle Access

Essential Security Supplies

An ANPR camera must capture a readable plate at a defined point and deliver the result to the intended system. Resolution alone does not establish that outcome. For NZ gates and car parks, specify capture geometry, vehicle speed, lighting, supported plate formats and the receiving access or recording platform before selecting a camera.

Define capture separately from recognition

Plate capture is the production of a useful plate image. Recognition is the software interpreting the characters. Access control adds another decision: whether that recognised vehicle should enter. Confirm which functions the selected camera performs locally and which require a server or licence. A clear image may still be recognised incorrectly, and a correct recognition must not bypass the site's permission rules.

Build a controlled capture point

Select a location where vehicles follow a predictable lane and speed. Measure distance, lane width and horizontal and vertical angles, then compare them with the camera's installation instructions. Avoid a capture point hidden by a queue or gate arm. A controlled entry lane is often easier to commission than an unrestricted multi-lane scene. Do not quote a universal angle or speed limit across different models.

UniView HC121-TS8CR-Z - 2MP 1080P PoE IP IR (50m) Ultra-Low-Light ANPR Camera
UniView HC121-TS8CR-Z - 2MP 1080P PoE IP IR (50m) Ultra-Low-Light ANPR Camera. Genuine supplier catalogue photograph.

Set exposure for moving reflective plates

A plate that looks good on a parked car may blur on a moving vehicle. Test shutter, gain and illumination with realistic approach speed and headlights. Reflective plates can be overexposed while the surrounding vehicle looks normal. Review recorded frames and recognition output together. Keep an overview camera where needed because the dedicated ANPR image may be optimised for the plate rather than the driver or incident context.

Verify NZ plate handling and interfaces

Ask for a trial using representative New Zealand plates, including formats relevant to the site. Confirm recognition regions and firmware support in writing. Check the supported API, relay or software integration and the ownership of that interface. Do not assume that an ONVIF video connection also carries plate events or permission lists to the access platform. Demonstrate the required event-to-action workflow.

DHI-ITC237-PU1B-IR WITH license - Dahua - 2 Megapixel Full HD WDR Access ANPR Camera
DHI-ITC237-PU1B-IR WITH license - Dahua - 2 Megapixel Full HD WDR Access ANPR Camera. Genuine supplier catalogue photograph.

Compare exact camera candidates

The Essential Security Supplies range includes the Uniview HC121-TS8CR-Z and Dahua access ANPR models. Their names establish candidate categories, not interchangeable capabilities. Check the manufacturer datasheet for the precise lens variant, illumination, capture limits and supported interfaces. Use identical acceptance conditions for shortlisted cameras. Record rejected and ambiguous results as well as successful recognitions so the trial is not biased towards easy examples.

Plan exceptions and acceptance criteria

Define how visitors, unreadable plates and vehicles without an active permission are handled. Set a manual assistance route that does not encourage users to tailgate. Agree a trial sample and acceptable outcomes before installation, then record results under day and night conditions. Consider data retention and operator access to vehicle records. A quoted recognition percentage is meaningful only with its test conditions and the site's exception process.

DHI-ITC413-PW4D-Z1 - Dahua Access ANPR Camera
DHI-ITC413-PW4D-Z1 - Dahua Access ANPR Camera. Genuine supplier catalogue photograph.

Apply the design to the actual project

A practical ANPR trial should use a written sample plan. Include normal arrivals, approach at the agreed maximum speed, queues and the lighting conditions that matter to the site. Record readable images, correct recognitions, ambiguous results and misses separately. An image test and a permission test should have separate results so a recognition problem is not confused with an expired permission. Retain evidence of the tested lens and exposure settings.

Make an exception workflow for visitors and unusual vehicles. Explain what the driver sees when the plate is unreadable, where assistance is requested and who can authorise entry. A repeated recognition should not create uncontrolled repeated commands to the barrier. Confirm the interface timing and the gate controller's handling with its supplier. Keep safety devices and vehicle presence sensing under the approved gate design. Re-test recognition after a camera, lane layout, firmware or interface change, rather than relying on the original trial indefinitely.

Commission evidence quality and failure recovery

Test the recorded image at the actual distance where the event matters. Use someone walking through the scene and a representative vehicle where relevant. Review the result on the client workstation, then export a short clip and open it independently. Live viewing, playback and export are different stages, and all three should pass. Include daylight, darkness and a transition in lighting when the objective depends on continuous coverage. Note any zone where the required detail is not achieved.

Disconnect an authorised test camera or network link under a controlled commissioning plan. Confirm that the fault reaches the responsible operator and that normal recording resumes after restoration. Where local recording or automatic retrieval is required, demonstrate that behaviour with the selected firmware and client. Do not assume that an SD-card slot or an interoperability logo proves that missing footage will be recovered. Record the outage interval, expected behaviour and actual result.

Commissioning acceptance checklist

Agree the expected result before testing. Use the installed configuration and retain evidence of each outcome, including a failure that must be corrected. The following checks supplement the exact manufacturer procedures and the approved project design.

Required check Record to retain
Test representative plates at the maximum agreed approach speed in both lighting conditions. Expected behaviour, actual result, configuration tested and responsible person. Resolve an unexpected outcome before accepting this requirement.
Verify plate events and permissions in the actual receiving system. Expected behaviour, actual result, configuration tested and responsible person. Resolve an unexpected outcome before accepting this requirement.
Test unknown, expired, ambiguous and deliberately unreadable plates without unsafe gate movement. Expected behaviour, actual result, configuration tested and responsible person. Resolve an unexpected outcome before accepting this requirement.

Repeat affected checks after a material equipment, software or site change. Keep the test record with the as-built schedule so the next maintainer can understand which configuration passed and which assumptions still need review.

Equipment candidates and specification checks

These are relevant active catalogue candidates for a project review, rather than a universal recommendation or a promise of immediate stock. Use the full product page and current manufacturer information to confirm the supplied variant and its role in your design.

Review the relevant Essential Security Supplies equipment range alongside the intended workflow. For further context, read our related installer guide.

Frequently asked questions

Is a high-resolution camera automatically suitable for ANPR?

No. Capture geometry, exposure, recognition software and regional support must all suit the application.

Can ONVIF guarantee plate-event integration?

No. Verify the specific event interface and test it with the selected recorder or access platform.

Should ANPR replace the gate's safety devices?

No. Vehicle identification grants permissions; the gate's approved safety arrangement remains a separate design requirement.

Primary references and technical scope

Use the primary manufacturer or technical reference for the claims it covers. General design guidance does not replace the selected product's installation manual. Confirm current firmware, model variants and the approved project requirements before ordering or commissioning.

For site policy, consult the New Zealand Privacy Commissioner's CCTV guidance.

Get specification help from Essential Security Supplies

Send your site layout, equipment schedule, intended workflow and any existing model details to Essential Security Supplies for specification help and a project quotation. Identify the functions that must be demonstrated and the interfaces owned by other contractors. Our enquiry route supports a documented equipment review without publishing prices or assuming unverified compatibility.
