Automatic Door Operators: Swing vs Sliding Systems Compared

Automatic door operators are used across New Zealand commercial buildings, healthcare facilities, retail premises and accessible entrances. Choosing between swing and sliding systems involves more than doorway width. Safety, accessibility, traffic volume, access control integration and emergency egress all influence the specification.

What is an automatic door operator?

An automatic door operator uses a powered mechanism to open and close a pedestrian door. Depending on the installation, it may be activated by motion sensors, push buttons, contactless switches, card readers or intercom systems. Swing systems rotate hinged leaves; sliding systems move leaves horizontally along a track. Both can provide accessible entry and integrate with electronic locking.

Swing vs sliding automatic doors: key differences

Automatic swing door operators

A swing operator is generally mounted above a new or existing hinged door. A drive arm connects the operator to the leaf, enabling powered opening and controlled closing. The precise mechanism and available manual-operation modes depend on the manufacturer and model.

Where swing operators suit the project

Swing operators are commonly considered for offices, accessible toilets, internal corridors, medical consultation rooms and smaller commercial entrances. Their main advantage is the potential to automate a suitable existing door without replacing the entire entrance. Installers must assess door and frame condition, hinge capacity, mounting structure, door weight, wind exposure and the opening direction.

Push and pull arm arrangements

The operator's mounting side and door-opening direction determine whether a push-arm or pull-arm arrangement is appropriate. Mounting clearance, overhead services and appearance also matter. Some manufacturers offer concealed alternatives for suitable architectural projects. Always use the product-specific installation instructions.

Swing-door safety

A swing leaf moves through an arc that may intersect an approach route. Assess nearby walls, furniture, queues, wheelchair manoeuvring, children and people with impaired vision. Depending on the site-specific risk assessment and operator, protection may include monitored safety sensors, opening and closing detection, speed or force limitations and hinge-area protection. The completed door must be commissioned against the manufacturer's instructions and applicable requirements.

Automatic sliding door operators

Sliding systems use a motorised drive to move one or more leaves along a horizontal track. A typical assembly includes an operator header, rollers, guides, a drive mechanism, controller, activation sensors and protective devices. Single-slide systems move one leaf to one side; bi-parting systems split the opening between two leaves.

Where sliding systems suit the project

Sliding doors are often specified at supermarkets, shopping centres, hospitals, reception areas and other busy entrances. They avoid projecting a swing leaf into the approach path and can be convenient for pedestrians using mobility aids, trolleys or equipment. They are not automatically the correct option for every accessible entrance: the overall route, clear opening, threshold and approach space still require assessment.

Space and structural requirements

A conventional sliding installation requires enough wall or glazed-panel width for the moving leaves to travel. Columns, adjacent openings and limited frontage can complicate the design. The header and support structure must accommodate the moving load. Existing entrances may require changes to framing, glazing or surrounding fabric. Telescopic configurations may be an option where lateral space is constrained, subject to manufacturer specifications.

Sliding-door safety

Sliding doors avoid the projecting swing arc but introduce closing-edge, opening-edge and trapping hazards. Risk assessment should consider adjacent fixed panels and the possibility of someone entering the opening during a closing cycle. Suitable presence sensors, other protective devices and thorough commissioning are essential. Test coverage under realistic approach and pedestrian conditions rather than checking only that an activation sensor opens the door.

Integrating automatic doors with access control

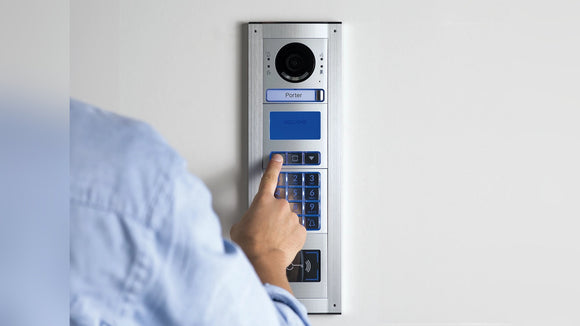

Door operators must be designed alongside electronic locking, access controllers, intercoms, request-to-exit devices and fire interfaces. On a typical access-controlled entrance, the controller authorises entry, releases a compatible lock and issues an opening command. The operator controls movement and its own safety monitoring. The precise sequence varies by equipment.

Confirm whether the operator needs a maintained or momentary input; whether lock-release confirmation is required; and how it handles an unsuccessful opening, door-held-open event or power loss. Consider separate entry and exit devices, daytime free access, after-hours locking, door position monitoring, emergency release and appropriate backup power. Double-leaf swing doors may require sequencing. Releasing a lock alone does not establish that the doorway meets emergency egress requirements.

Accessibility and New Zealand requirements

New Zealand Building Code Clause D1, Access Routes, addresses safe movement into, within and out of buildings. The relevant compliance pathway and building use determine the design requirements. Evaluate the required clear opening, wheelchair manoeuvring space, threshold, approach route and reachable controls as part of the whole entrance. A powered operator cannot compensate for an otherwise unsuitable doorway.

At an accessible entrance, a swing leaf must not create an unacceptable obstruction or collision hazard. Sliding doors avoid that particular issue but still need appropriate detection and entrapment protection. See MBIE's D1 Access Routes guidance and its building entrance guidance.

Fire safety and emergency escape

Where a powered door forms part of an escape route, the arrangement must be coordinated with the building's fire design. The appropriate solution depends on location, occupancy, escape width and the applicable compliance pathway. Options for specifically designed products may include breakout functionality, automatic opening, compatible emergency release or another approved arrangement. Normal automatic operation does not by itself establish emergency-exit suitability. The fire designer and relevant building professionals should approve the interface and fail-safe behaviour before hardware is ordered.

Installation, commissioning and maintenance

Long-term reliability depends on correct mounting, alignment, protection and preventative maintenance. Inspect swing systems for hinge condition, drive-arm fixings and changing door alignment. Sliding systems require checks of tracks, rollers, belts, guides and moving-leaf alignment. Both require periodic testing of sensors, activation devices, electronic locks and emergency functions. High-traffic and critical healthcare entrances may need more frequent inspection than lightly used internal doors.

Handover should include the manufacturer's operating instructions, commissioning records, maintenance arrangements and clear responsibilities for testing any connected access control and fire interfaces. Sensor coverage and door behaviour should be checked using realistic approaches by different users, not just a single walk-through.

Which system suits your entrance?

Consider a swing operator where a suitable hinged door already exists, swing clearance is adequate and retaining the existing entrance is a priority. Consider a sliding operator where pedestrian flow is frequent, avoiding a projecting leaf matters and sufficient lateral travel space is available. Neither type is universally suitable: a sliding retrofit may entail substantial building work, while a swing installation may obstruct a busy approach route.

Document structural conditions, pedestrian movements, safety risks, accessibility, lock compatibility and emergency-operation requirements before confirming the specification. The manufacturer's product documentation should determine the final operator, sensors and compatible interfaces.

For a broader overview of operator configurations and the available product ranges, read our automatic swing and sliding door operator buyer's guide. If the door type is settled and you are comparing manufacturers, our Record, dormakaba and ISEO operator comparison covers product selection in more detail. This article focuses on the entrance layout and operational trade-offs between swing and sliding arrangements.

Frequently asked questions

Can an existing swing door be automated?

Often, provided the door, frame, hinges, mountings and clearances are suitable. Assess the existing assembly and risk controls before selecting an operator.

Can automatic sliding doors work with access control?

Yes. Compatible systems can integrate with card readers, intercoms and electronic locking. The locking and operator sequence, including power failure and emergency operation, must be engineered together.

Which configuration is suitable for wheelchair access?

Either may be suitable if the complete entrance complies with the applicable requirements. Sliding doors can avoid the obstruction of a swing arc, but the opening width, approach and threshold remain important.

Do automatic doors need safety sensors?

The installation must adequately manage collision and entrapment risks. The specific protective measures depend on the system, manufacturer instructions and site risk assessment.

What happens during a power failure?

Behaviour varies by operator, locking equipment and emergency configuration. Confirm any manual-operation, backup-power or automatic-opening requirements as part of the approved design.

Conclusion

Swing operators can offer a practical way to automate suitable existing hinged doors. Sliding systems may provide a less obstructed approach at busy public entrances. For security installers, selecting the operator is only one part of the job: safe activation, electronic locking, access control, accessibility and emergency egress must work as one coordinated system.
