EliteControl Infinity Series Alarm Kits: Complete Range Guide for NZ Security Professionals

Essential Security Supplies

The EliteControl Infinity Series: New Zealand's Most Versatile Alarm Platform

The EliteControl Infinity Series — manufactured and designed in New Zealand by AAP — is a modular security and control platform engineered for residential, commercial, and light industrial applications. Built around the EC security and control panel, the Infinity Series integrates alarm, access control, and home automation into a single, scalable system. Whether you are specifying a straightforward residential kit or a multi-zone commercial installation with wireless sensors, access control modules, and remote app management, the EC platform delivers the flexibility to match any project requirement.

This guide covers every EliteControl alarm kit and panel configuration available at Essential Security Supplies NZ, including full specifications, kit inclusions, and guidance on selecting the right configuration for your installation.

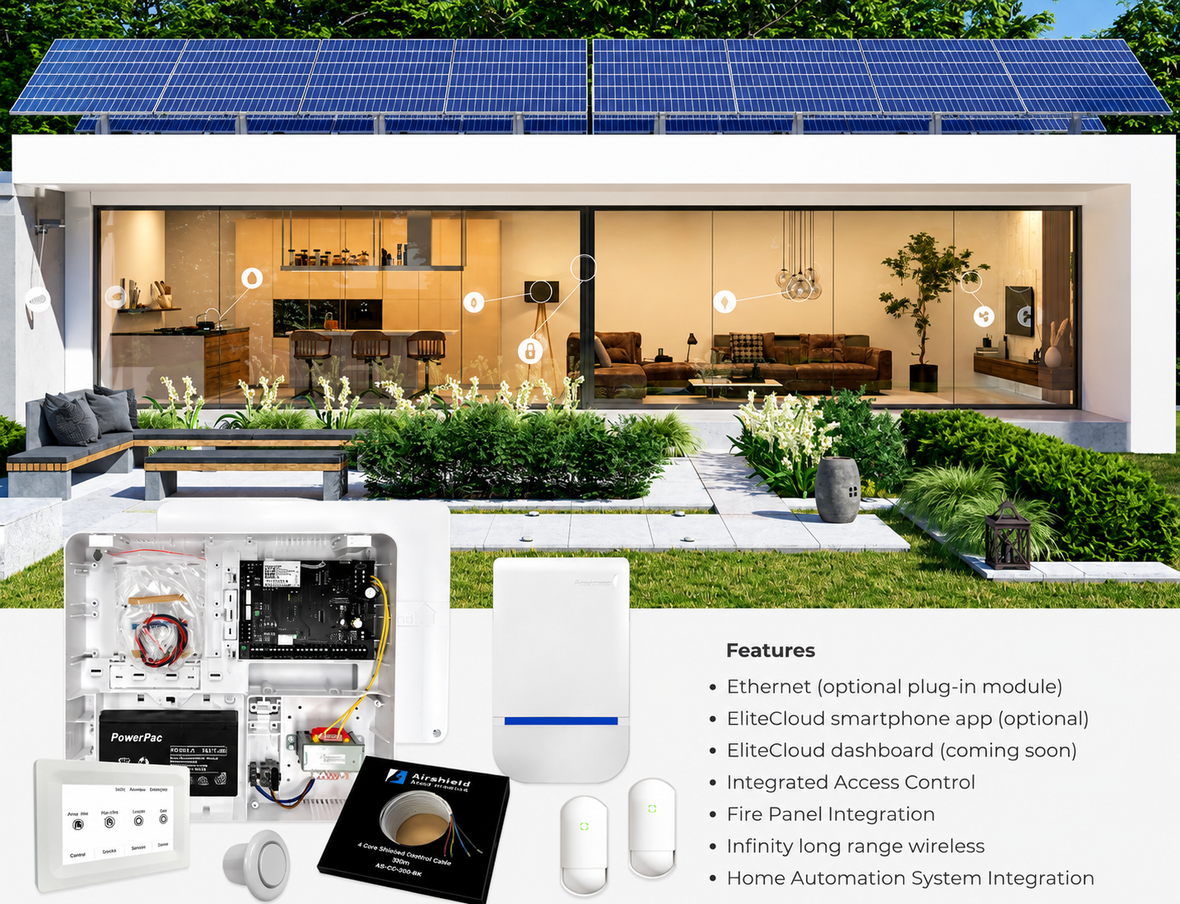

EC-KIT LCD NC AAP EliteControl Infinity Series Alarm Kit - complete security panel kit with LCD keypad and external siren for residential and commercial NZ ---

Why the EliteControl Infinity Series Stands Apart

The Infinity Series is built on a fully modular architecture, meaning installers can start with a base kit and expand the system over time without replacing core hardware. This approach reduces upfront cost, eliminates unnecessary hardware on smaller sites, and future-proofs the installation as client requirements evolve.

Key platform capabilities include:

  • Up to 248 inputs, 32 outputs, 32 keypads, and 32 partitions
  • 32 time schedules, 32 access levels, 2,000 users, and 10,000 event log
  • Integrated access control via EC-A2 door control modules
  • Fire panel integration
  • Home automation system integration
  • Infinity long-range wireless (up to 500m range, up to 24 wireless sensors per EC panel)
  • EliteCloud smartphone app for remote monitoring and control (optional EC-IoT module)
  • Ethernet connectivity (optional plug-in module)
  • 2/5 year warranty (panel/kit dependent)
  • New Zealand designed and manufactured

For guidance on alarm system standards applicable to New Zealand installations, refer to the New Zealand Security Association (NZSA) technical guidelines and installer accreditation resources.

---

EliteControl Alarm Kits: Full Range

The EC alarm kit range provides pre-matched, ready-to-install configurations that bundle the EC control panel, keypad, sensors, sounders, battery, and enclosure into a single SKU. This eliminates component compatibility guesswork and simplifies procurement for standard residential and light commercial installations.

---

EC-KIT LCD — EC Security Panel Kit (with Cable)

EC-KIT LCD AAP EliteControl Infinity Series Security Panel Kit - complete alarm kit with LCD keypad and 100m cable for residential and commercial NZ

The EC-KIT LCD is the flagship complete alarm kit in the EliteControl range, including 100m of 4-core tinned copper cable for a full wired installation. It is the recommended starting point for most residential and small commercial installations where a wired sensor run is practical.

Kit Includes:

  • EC security and control panel
  • EC-LCD full English keypad (vertical style, slimline)
  • OPT-FLX-S-ST sensor x 2
  • DM12-7.5 SLA battery
  • 4-core 0.2mm tinned copper cable (100m)
  • PS209-R internal and EC-SIREN external sounders
  • EC-PLAS CAB enclosure with 16VAC 1.4A supply

Also available with a black external siren: EC-KIT LCD BLACK.

View our product — EC-KIT LCD

---

EC-KIT LCD NC — EC Security Panel Kit (No Cable)

The EC-KIT LCD NC is identical to the EC-KIT LCD but omits the cable run — suited to installations where wireless sensors will be used, cable is already in place, or the installer is supplying their own cable to specification.

Kit Includes:

  • EC security and control panel
  • EC-LCD full English keypad (vertical style, slimline)
  • OPT-FLX-S-ST sensor x 2
  • DM12-7.5 SLA battery
  • PS209-R internal and EC-SIREN external sounders
  • EC-PLAS CAB enclosure with 16VAC 1.4A supply

Also available with a black external siren: EC-KIT LCD NC BLACK.

View our product — EC-KIT LCD NC

---

EC-KIT KP B — EC Security Alarm Kit with Black Touchscreen Keypad

EC-KIT KP B AAP EliteControl Infinity Series Alarm Kit - complete security kit with EC-KP black slimline touch keypad for residential NZ

The EC-KIT KP B substitutes the standard EC-LCD keypad for the EC-KP B slimline touch interface keypad in black — a popular choice for modern residential fitouts where a sleek, contemporary keypad aesthetic is preferred.

Kit Includes:

  • EC security and control panel
  • EC-KP B slimline touch interface keypad (black)
  • OPT-FLX-S-ST sensor x 2
  • DM12-7.5 SLA battery
  • 4-core 0.2mm tinned copper cable (100m)
  • PS209-R internal and EC-SIREN external sounders
  • EC-PLAS CAB enclosure with 16VAC 1.4A supply

Also available with a black external siren: EC-KIT KP B BLACK.

View our product — EC-KIT KP B

---

EliteControl Panel-Only Configurations

For installers who prefer to source components individually, or who are upgrading an existing installation, the EC panel-only configurations provide the core control panel and enclosure without a full kit bundle.

---

EC-PLAS LCD — EC Security Alarm Panel with LCD Keypad in Enclosed Cabinet

EC-PLAS LCD AAP EliteControl Infinity Series Security Alarm Panel - EC control panel with LCD keypad in enclosed plastic cabinet for commercial NZ

The EC-PLAS LCD bundles the EC control panel and EC-LCD keypad into the EC-PLAS CAB enclosed plastic cabinet — without sensors, sounders, or cable. Suited to installers who are specifying sensors and sounders separately to match site requirements.

Includes:

  • EC security and control panel
  • EC-LCD full English keypad (vertical style)
  • EC-PLAS CAB enclosure with 16VAC 1.4A supply
  • 2K2, 4K7 and 8K2 resistor and screw pack

View our product — EC-PLAS LCD

---

EC-PLAS — EC Control Panel in EC-CAB-1A (No Keypad)

EC-PLAS AAP EliteControl Infinity Series Control Panel - EC security panel in EC-CAB-1A enclosure without keypad for custom alarm installations NZ

The EC-PLAS is the base panel configuration — the EC control panel in the EC-PLAS CAB enclosure, with no keypad. Suited to installations where the keypad is being sourced separately, or where a remote keypad location requires a different keypad model.

Includes:

  • EC security and control panel
  • EC-PLAS CAB enclosure with 16VAC 1.4A supply
  • 2K2, 4K7 and 8K2 resistor and screw pack

View our product — EC-PLAS

---

EliteControl Expansion Modules

The Infinity Series is designed to grow with the installation. Plug-on expansion modules extend the capability of any EC control panel without replacing the base hardware.

---

EC-IoT — EliteCloud App and Monitoring Module

EC-IoT AAP EliteCloud App Monitoring Module - smartphone remote control and monitoring module for EliteControl Infinity Series EC security systems NZ

The EC-IoT module adds EliteCloud smartphone app connectivity to any EC security system. It installs on Expansion Port C (EXP C) and enables remote monitoring, control, and management from iOS or Android devices.

Features:

  • System history and live sensor status
  • User management
  • Control up to 32 outputs
  • Up to 10 sites per app user
  • Up to 100 app users per site
  • Customisable favourites buttons and push notifications
  • Select from more than 80 notification options
  • Plug and play, pre-programmed
  • Apple or Android compatible
  • Bank-level encryption
  • Proudly NZ designed and manufactured
  • Ongoing feature enhancement

View our product — EC-IoT EliteCloud Module

---

EC-A2 REX — 2 Door Access Control Module

EC-A2 REX AAP EliteControl 2 Door Access Control Module - plug-on door access control expansion for EC and EC-i security systems NZ

The EC-A2 REX adds two-door access control capability to any EC or EC-i security system. Up to 16 x EC-A2 modules can be added to a single EC control panel, enabling large-scale access control deployments from the same platform.

Features:

  • 2 x reader/keypad inputs
  • 4 x inputs (2 x dedicated REX and 2 x assignable)
  • 2 x clean outputs, 2A rated at 30V
  • 2 x quick connect keypad bus sockets
  • Keypad bus updates supported
  • All terminals large and plug-in
  • Add up to 16 x EC-A2 to 1 x EC control panel
  • 5-year warranty
  • Dimensions: 140 x 52 x 25mm

View our product — EC-A2 REX Access Control Module

---

EC-Z8 — 8 Zone Expander

The EC-Z8 is an 8-input zone expander for EC and ESX security systems, allowing the input capacity of the base panel to be extended for larger installations with more detection zones.

View our product — EC-Z8 Zone Expander

---

EC-O4 — 4 Relay Output Expander

The EC-O4 adds four relay outputs to the EC or ESX security system, enabling integration with automation devices, gate operators, lighting systems, and other output-driven hardware.

View our product — EC-O4 Output Expander

---

EC-LCD Keypad — Slimline LCD Keypad for Infinity Series

EC-LCD AAP EliteControl Slimline LCD Keypad - full English text keypad with built-in prox reader option for Infinity Series EC control panels NZ

The EC-LCD is the standard keypad for the Infinity Series EC control panels, featuring a slim profile, full English text display, and adjustable white backlight. It is available in a standard version and as the EC-LCD-PROX with a built-in proximity reader for credential-based arming and disarming.

Features:

  • Slim profile with informative English text display
  • Quick arm and stay arm buttons
  • Adjustable white backlight
  • Control button for lights, gates, and more
  • Built-in prox reader (EC-LCD-PROX model only)
  • EC programming directly from keypad
  • Low power consumption
  • UV-stabilised plastics

View our product — EC-LCD Keypad

---

Product Specifications

Specification Detail
Platform EliteControl Infinity Series (EC)
Manufacturer AAP — New Zealand designed and manufactured
Maximum Inputs 248
Maximum Outputs 32
Maximum Keypads 32
Maximum Partitions 32
Time Schedules 32
Access Levels 32
Users 2,000
Event Log 10,000 events
Wireless Range Up to 500m (Infinity long-range wireless)
Wireless Sensors per Panel Up to 24
Wireless Battery Life Up to 5 years
Power Supply (kit enclosure) 16VAC 1.4A (EC-PLAS CAB)
Battery (kit) DM12-7.5 SLA
Connectivity Ethernet (optional plug-in module); EliteCloud app via EC-IoT module
Access Control Expansion Up to 16 x EC-A2 modules (2 doors each) per EC panel
Zone Expansion EC-Z8 (8-input expander)
Output Expansion EC-O4 (4-relay output expander)
Integrations Fire panel integration; home automation system integration
Warranty 2-year (kits) / 5-year (wireless accessories)
Keypad Options EC-LCD (slimline LCD), EC-LCD-PROX (with built-in prox reader), EC-KP B (black touch interface)

View our product — Full EliteControl Alarm System range at Essential Security Supplies NZ.

---

Choosing the Right EliteControl Kit for Your Installation

Selecting the correct EC kit configuration comes down to four factors: whether the installation is wired or wireless, the preferred keypad style, whether sensors and sounders are being sourced separately, and the level of remote monitoring and access control required.

---

Wired vs Wireless Installations

For new builds or installations where cable runs are practical, the EC-KIT LCD (with 100m cable) is the most complete starting point. For retrofits, heritage buildings, or sites where running cable is impractical, the EC-KIT LCD NC paired with Infinity long-range wireless sensors eliminates the need for cable runs entirely — with up to 500m wireless range and up to 5-year battery life on wireless devices.

---

Keypad Selection

The EC-LCD keypad suits most residential and commercial installations with its full English text display and slim profile. For premium residential fitouts where a modern touch interface is preferred, the EC-KIT KP B with the black slimline touch keypad delivers a contemporary aesthetic. For installations requiring credential-based arming, the EC-LCD-PROX adds a built-in proximity reader to the standard LCD keypad.

---

Panel-Only vs Full Kit

Installers specifying sensors and sounders to match specific site requirements — or upgrading an existing installation — should consider the EC-PLAS LCD or EC-PLAS panel-only configurations. These provide the core control panel and enclosure without bundled peripherals, giving full flexibility over component selection.

---

Remote Monitoring and Access Control

For installations requiring remote monitoring, the EC-IoT module adds EliteCloud smartphone app connectivity to any EC system — supporting up to 100 app users per site and 10 sites per user. For sites requiring door access control, the EC-A2 REX module integrates two-door access control directly into the EC platform, with up to 16 modules per panel.

---

Frequently Asked Questions

---

Is the EliteControl Infinity Series suitable for commercial installations?

Yes. With support for up to 248 inputs, 32 partitions, 2,000 users, and 16 x EC-A2 access control modules per panel, the Infinity Series is well suited to small to medium commercial premises, multi-tenanted buildings, and sites requiring integrated alarm and access control from a single platform.

---

Can I add wireless sensors to an EC kit?

Yes. The Infinity Series supports up to 24 wireless sensors per EC panel via the Infinity long-range wireless system, with up to 500m range and up to 5-year battery life. Wireless and wired sensors can be used on the same system.

---

What is the EliteCloud app and how does it work?

EliteCloud is AAP's smartphone app for remote monitoring and control of EC security systems. It requires the EC-IoT plug-on module (sold separately, order code EC-IoT). The app is available for iOS and Android, supports up to 100 users per site, and provides live sensor status, system history, output control, and customisable push notifications.

---

Is the EliteControl system compatible with fire panels?

Yes. The EC platform supports fire panel integration, making it suitable for installations where a combined intruder alarm and fire detection system is required.

---

What warranty does the EliteControl range carry?

EC alarm kits carry a 2-year warranty. Infinity long-range wireless accessories carry a 5-year warranty. The EC-A2 REX access control module carries a 5-year warranty. All products are New Zealand designed and manufactured by AAP.

---
