Dome vs Bullet vs Turret Cameras: Choosing the Right Form Factor for Your Installation

Why Camera Form Factor Matters in Professional Surveillance Design

FERN360 manufactures a complete range of IP surveillance cameras across dome, bullet, and turret form factors - each engineered for specific mounting environments, installation priorities, and operational requirements. Understanding the practical differences between these three designs ensures installers and procurement teams can specify the correct FERN360 camera for every position on a project, from retail ceilings to outdoor perimeters.

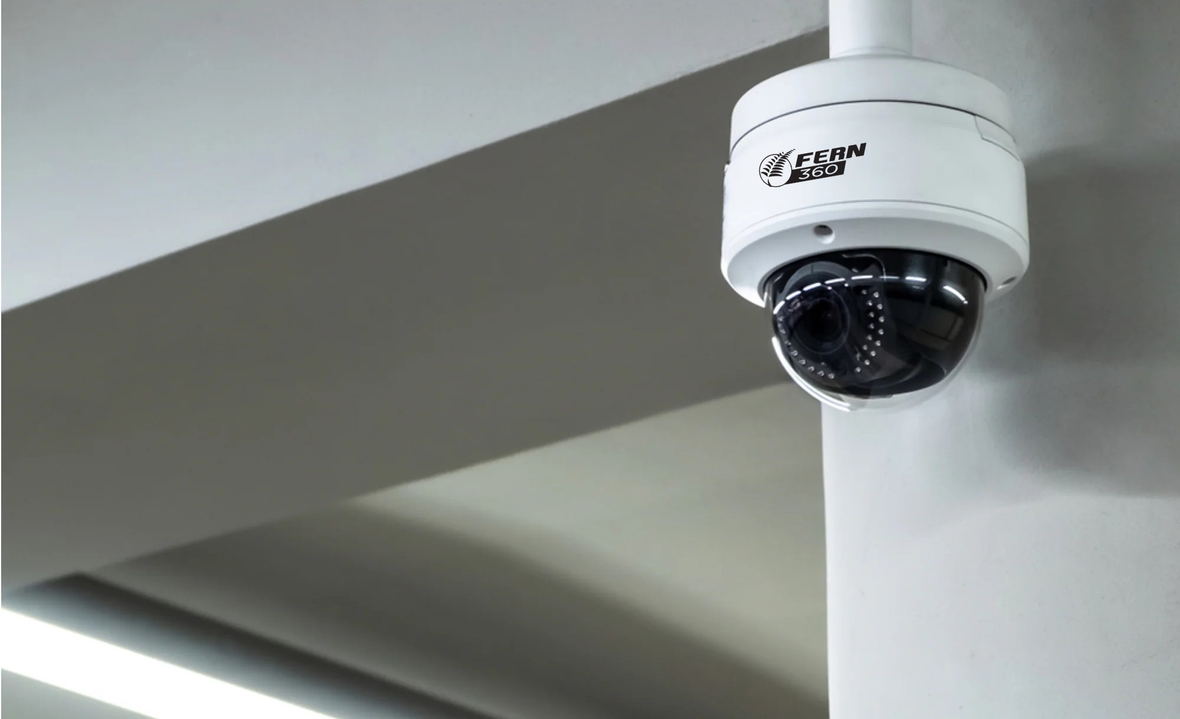

FERN360 Dome Cameras: IK10 Vandal Resistance and Wide-Angle Indoor Coverage

FERN360 dome cameras are housed in a compact, flush-mount enclosure designed for ceiling installation. The rounded dome housing conceals the lens direction, creating ambiguity that reduces the ability of individuals to identify the monitored zone - a useful deterrence factor in retail, hospitality, and public-facing environments. All FERN360 dome models carry IK10 vandal resistance as standard, protecting the camera against deliberate physical interference in high-risk locations.

Key Strengths of FERN360 Dome Cameras

• IK10 vandal resistance - reinforced housing withstands sustained physical impact
• Starlight low-light imaging - 0.002 Lux minimum illumination at F1.6 for colour detail in near-dark conditions
• Wide-angle fixed coverage - 2.8mm fixed lens delivers a broad field of view across open-plan spaces
• IP67 ingress protection - suitable for covered outdoor mounting and building entries
• Intelligent Video Analytics (IVA) - tripwire and perimeter intrusion detection processed at the camera edge
• On-board microSD storage - up to 512GB for local backup or standalone recording independent of an NVR
• 120dB WDR - accurate exposure in high-contrast scenes with mixed natural and artificial light

Best Applications for FERN360 Dome Cameras

FERN360 dome cameras are the correct specification for retail floor coverage, office corridors, building lobbies, car park ceilings, banking environments, and covered outdoor areas. The IK10 rating also makes them appropriate for correctional, healthcare, education, and public-transport installations where tamper risk is elevated.

FERN360 Bullet Cameras: Perimeter Deterrence with Motorised Varifocal Lens

FERN360 bullet cameras use a cylindrical housing that projects outward from the wall or pole mount surface. The prominent, immediately recognisable form factor acts as a strong deterrent at perimeter entry points, driveways, and building exteriors - the visible presence of a bullet camera communicates active surveillance before any incident occurs. FERN360 bullet models pair a 5MP Starlight sensor with a motorised varifocal lens, allowing remote focus and zoom adjustment across a range of coverage distances without physical access to the camera after installation.

Key Strengths of FERN360 Bullet Cameras

• High deterrence profile - prominent housing immediately signals active surveillance at perimeter positions
• Motorised varifocal lens 2.8-12mm - remote zoom and focus adjustment from NVR or VMS without ladder access
• 5MP Starlight sensor - 1/2.8" CMOS at 0.002 Lux minimum illumination for colour imaging at night
• 120dB WDR - maintains accurate detail at car park exits, gate entries, and other high-contrast outdoor scenes
• 80m Smart IR - extended infrared range with automatic intensity adjustment to prevent target washout
• IP67 weatherproofing - full protection for exposed exterior mounting
• Metal housing - robust construction for long-term outdoor durability
• Tripwire and perimeter analytics (IVS) - edge-based intelligent video analysis without NVR dependency

Best Applications for FERN360 Bullet Cameras

FERN360 bullet cameras are the preferred specification for building perimeters, car parks, driveways, loading docks, and gate entry points. The motorised varifocal lens makes them particularly suitable for licence plate capture lanes and long-run outdoor corridors where the required coverage distance varies between sites and needs to be confirmed at commissioning. The 80m IR range also makes them the strongest FERN360 form factor for large open-area and rural perimeter monitoring.

FERN360 Turret Cameras: Post-Mount Aim Adjustment and Clean IR Performance

FERN360 turret cameras - sometimes referred to as eyeball cameras - use a ball-and-socket design in which the camera module sits within a separate housing ring. This allows the lens direction to be adjusted freely after the base is fixed to the mounting surface, providing significant flexibility during commissioning when precise aim needs to be confirmed on-site. Because FERN360 turret cameras have no dome cover glass over the lens, they deliver cleaner infrared output at night with no internal reflection or IR scatter from a housing dome - a meaningful image quality advantage in low-light conditions.

Key Strengths of FERN360 Turret Cameras

• Ball-and-socket aim adjustment - lens direction set after mounting without relocating or remounting the base plate
• No dome glass IR interference - full infrared output reaches the scene with no internal housing reflection
• 5MP Starlight sensor - 1/2.8" CMOS at 0.002 Lux for colour imaging in near-dark environments
• Motorised varifocal lens 2.8-12mm - remote zoom and focus adjustment from NVR or VMS
• 120dB WDR - accurate colour and detail in mixed-light or backlit scenes
• 30m Smart IR - adaptive IR intensity for consistent night performance at varying target distances
• IP67 weatherproofing - suitable for semi-exposed outdoor and covered ceiling mounting
• Metal housing - durable compact form factor for long-term installation

Best Applications for FERN360 Turret Cameras

FERN360 turret cameras are well-suited to residential installations, small commercial premises, warehouses, server rooms, and any location where precise directional aim needs to be finalised on-site after the base is fixed. They are also the stronger specification where night vision image quality is a primary concern, as the absence of dome glass maximises infrared efficiency and reduces any image degradation from internal reflection.

FERN360 Dome vs Bullet vs Turret: Direct Comparison

Product Specifications

For full model-specific datasheets and the complete FERN360 camera range, view our product listings at Essential Security Supplies NZ.

How to Choose the Right FERN360 Camera for Your Site

Specify a FERN360 Dome Camera When:

• The installation requires a low-profile, discreet ceiling-mount appearance
• IK10 vandal resistance is required for high-risk or public-facing environments
• Wide-angle fixed coverage of an open indoor space is the priority
• A fixed-lens model is sufficient and a simpler commissioning process is preferred

Specify a FERN360 Bullet Camera When:

• Maximum visual deterrence at a perimeter or entry point is the objective
• Extended IR range up to 80m is required for large outdoor areas or rural perimeters
• A varifocal lens is required to adjust coverage distance after installation
• The camera will be wall or pole mounted in a fixed outdoor direction
• Licence plate capture or long-run outdoor monitoring is required

Specify a FERN360 Turret Camera When:

• Post-installation aim adjustment is required without remounting the base
• Maximum night vision image quality is needed with no dome glass degrading IR output
• A varifocal lens in a ceiling-mount-friendly compact form factor is required
• A semi-discreet profile is preferred over the prominent bullet housing

FERN360 Complete Surveillance Kits

For complete IP surveillance system deployments, FERN360 offers matched camera and NVR kits across all three form factors. These kits pair FERN360 cameras with a compatible FERN360 NVR pre-configured for PoE plug-and-play deployment, reducing commissioning time and ensuring full hardware compatibility from camera to recorder. Kits are available with 2 or 4 cameras paired with 5ch, 10ch, or 20ch NVR options with flexible HDD configurations.

• View our product - FERN360 FGSIP-C5BMVA-2812 5MP Bullet Camera
• View our product - FERN360 2-Camera Motorised Bullet Kit with 10ch NVR
• View our product - FERN360 4-Camera Motorised Turret Kit with 20ch NVR

NZ Surveillance Compliance Considerations

CCTV and surveillance camera installations in New Zealand commercial and public-facing environments are governed by the Office of the Privacy Commissioner (OPC) under the Privacy Act 2020. Installers should ensure appropriate signage, defined data retention periods, and role-based access controls are in place for every installation regardless of camera form factor. The New Zealand Security Association (NZSA) provides professional guidance on surveillance system design and installation standards for the NZ market.

For project specification support or to discuss the technology don't hesitate to contact us
