Gate Controllers NZ: How to Choose the Right System for Your Gate

Essential Security Supplies

Gate controllers are the brain of any automated gate system - selecting the right one determines how reliably, safely, and conveniently your gate operates for years to come. Whether you are automating a residential swing gate, a commercial sliding gate, or a high-traffic facility entrance, Essential Security Supplies stocks a range of gate controllers and automation systems from trusted brands including DACE, Beninca, and Palgate, all available in New Zealand.

GT-D-CON-KT DACE Condo DC Gate Opener Kit - Sliding gate controller for light commercial and residential use NZ ---

Understanding Gate Controller Technology

A gate controller is an electronic control board or integrated unit that manages the motor, safety inputs, access credentials, and operational logic of an automated gate. Modern gate controllers range from simple relay-based boards to sophisticated systems with Bluetooth connectivity, GSM remote access, solar charging integration, and multi-user credential management. Choosing the right controller depends on your gate type (swing or slide), gate weight and length, traffic volume, power source, and the access control features you need.

The New Zealand Security Association (NZSA) provides guidance on best practices for automated gate installations, including safety requirements for commercial and residential sites. Compliance with AS/NZS safety standards for powered gates is strongly recommended for all installations.

---

Gate Controller Types: Swing vs Slide

The two primary gate types each require a compatible controller and motor combination.

Swing Gate Controllers

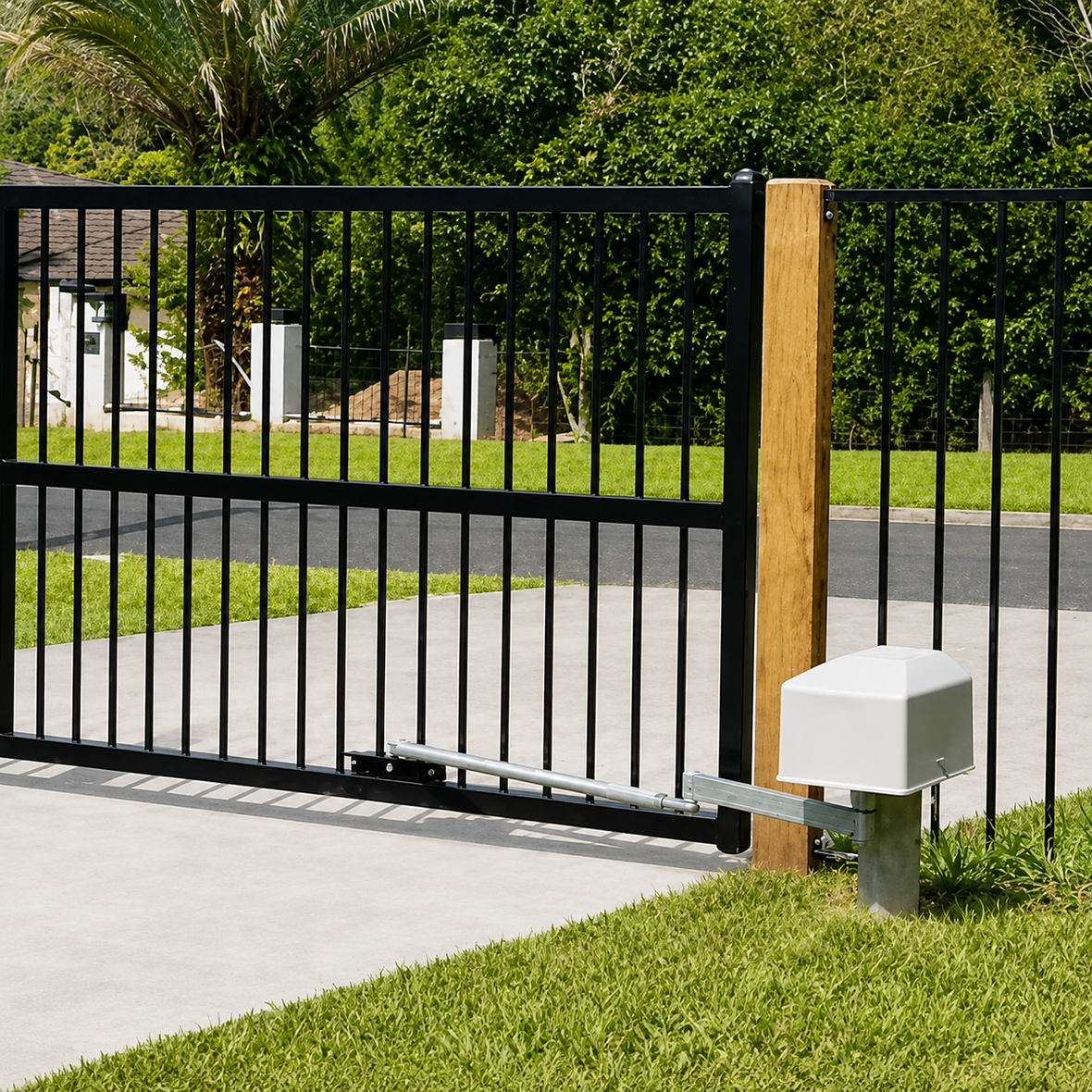

Swing gate systems use articulated drive arms to push or pull gate leaves open and closed. The DACE DuraSwing range is purpose-built for swing gate automation in New Zealand conditions.

DD305M DACE DuraSwing Single Gate Motor - Swing gate automation with built-in control board NZ

The DD305M DACE DuraSwing Single Gate Motor (Master) is an all-in-one unit with a built-in control board, solid steel articulated drive arm, electronic anti-crush protection, battery backup, and solar integration capability. It suits gates up to 4m long and 100kg per leaf. View our product

For double swing gates, the DD301S DACE DuraSwing Slave Motor pairs with the master unit to automate both leaves simultaneously. View our product

---

Sliding Gate Controllers

Sliding gate systems use a rack-and-pinion drive to move the gate laterally along a track. The DACE Condo DC range is designed for light commercial and high-usage residential sliding gate applications.

GT-D-CON-KT DACE Condo DC Gate Opener Kit - Sliding gate motor and controller kit for commercial use NZ

The GT-D-CON DACE Condo DC Duraslide Gate Opener is the motor-only unit for integrators who supply their own accessories, while the GT-D-CON-KT DACE Condo DC Gate Opener Kit includes everything needed for a complete installation. A no-battery variant (GT-D-CON-MBRK) is also available for sites with reliable mains power. View our product

For heavier-duty sliding applications, the CONDOKIT Sliding Gate Automation Kit supports gates up to 600kg at 18m/min, and includes a steel rack, remotes, safety beam, battery, and access controller with PIN/tag reader. View our product

---

Bluetooth and GSM Gate Controllers

Bluetooth and GSM gate controllers allow users to open gates via smartphone app or mobile call, eliminating the need for physical remotes or keypads. These systems are particularly suited to multi-tenant residential buildings, commercial car parks, and sites requiring audit trails or user management.

The Palgate PAL-SGBT10 Bluetooth Gate Controller range offers three tiers to match your user volume requirements:

  • PAL-SG-BT10-LITE - includes 20 user licences, 1 relay N/O and N/C. View our product
  • PAL-SGBT10-PRO - includes 100 user licences. View our product
  • PAL-SGBT10-ULTIMATE - includes unlimited user licences, ideal for large commercial sites. View our product
---

Beninca Gate Controllers and Automation Kits

Beninca is an Italian brand with a strong track record in gate automation for both residential and commercial applications. Essential Security Supplies stocks a range of Beninca swing and sliding gate motors, control boards, and complete kits for New Zealand installers.

B-BOB3024KIT-1 Beninca Black Edition Single Swing Gate Kit - 24V DC swing gate automation kit for residential use NZ

The B-BOB3024KIT-1 Beninca Black Edition Single Swing Gate Kit is a complete 24V DC swing gate solution including the BOB3024E motor, TRUST24 control board, PUPILLA safety beam, and two TO.GO2VA remotes - everything needed for a single-leaf swing gate installation. A dual-leaf variant (B-BOB3024KIT-2) is also available. View our product

B-TRUST24 Beninca 24V DC Swing Gate Controller - standalone control board for swing gate automation NZ

The B-TRUST24 Beninca 24V DC Swing Gate Controller is the standalone control board for integrators building custom swing gate systems with their own motor selection. View our product

B-BULL624TURBO Beninca 24VDC 600kg Sliding Gate Motor - high-speed sliding gate automation for commercial use NZ

For sliding gate applications, the B-BULL624TURBO Beninca 24VDC 600kg Sliding Gate Motor delivers 25m/min operating speed and suits heavy-duty commercial sliding gates up to 600kg. Battery backup kits (B-BACK UP SLIDE-624) are available separately. View our product

---

Product Specifications

Specification Detail
DACE DuraSwing (DD305M / DD301S)
Gate type Swing (single or double leaf)
Max gate weight 100 kg per leaf
Max gate length 4 m per leaf
Drive mechanism Solid steel articulated drive arm
Battery backup 12V 7Ah (included)
Solar integration Yes (via SA024 Solar Battery Charger Module)
Safety Electronic anti-crush (adjustable), safety beam integration
Control board Built-in (all-in-one unit)
DACE Condo DC (GT-D-CON / GT-D-CON-KT)
Gate type Sliding
Application Light commercial / high-usage residential
Power supply 24V DC
CONDOKIT Sliding Gate Automation Kit
Gate type Sliding
Max gate weight 600 kg
Operating speed 18 m/min
Cycle rating 300 cycles per 24 hours
Rack included 2 x 2m steel rack
Remotes included 2 x 4-button
Safety 1 x safety beam included
Access control PIN/tag reader included
Palgate PAL-SGBT10 Bluetooth Controllers
Connectivity Bluetooth (smartphone app)
Relay output 1 x N/O and N/C
User licences LITE: 20 | PRO: 100 | ULTIMATE: Unlimited
Beninca BOB3024KIT / BULL624TURBO
Swing gate kit voltage 24V DC
Sliding gate max weight 600 kg
Sliding gate speed 25 m/min
Battery backup Available (B-BACK UP SLIDE-624)

View our full Gate Controllers range for complete model-specific data and current stock availability.

---

Safety Accessories for Gate Automation

Safety beams are a critical component of any automated gate installation, preventing the gate from closing on a person or vehicle. DACE offers both wired and wireless options.

PB-D-WIRED DACE Duraoptic Beam Kit - Wired infrared safety beam for automated gate installations NZ

The PB-D-WIRED DACE Duraoptic Beam Kit (Wired) and PB-D-WIRELESS DACE Duraoptic Beam Kit (Wireless) both offer selectable 10m or 20m range, fully weatherproof enclosures, and 12-24V DC/AC power supply compatibility. The wireless variant adds dual-channel anti-crosstalk technology and nano-watt power consumption for battery longevity. View our product

Remote controls for DACE systems are available in the TX-D-GREYEXO (Grey, 4-button) and TX-D-EXOBLK (Black, 4-button) Duratronic variants, compatible with the full DACE Duraslide and DuraSwing range.

---

Solar and Off-Grid Gate Automation

For gates in locations without reliable mains power, the SA024 DACE Solar Battery Charger Module provides a plug-and-play solar integration solution. Simply add a solar panel to keep the gate battery topped up without grid connection. View our product

---

Choosing the Right Gate Controller: Key Considerations

When specifying a gate controller for a New Zealand installation, consider the following factors:

  • Gate type: Swing gates require articulated arm motors; sliding gates require rack-and-pinion drives.
  • Gate weight and length: Match the motor rating to your gate's physical specifications - undersizing leads to premature wear.
  • Traffic volume: Residential gates typically require 50-100 cycles per day; commercial sites may need 300+ cycles per day.
  • Access control integration: Decide whether you need PIN, tag, remote, Bluetooth, or GSM access - or a combination.
  • Power source: Mains-powered sites have the widest choice; off-grid sites should consider DC motors with solar charging.
  • Safety compliance: All automated gates should include safety beams and anti-crush protection to meet AS/NZS installation standards.
  • User management: For multi-tenant or commercial sites, Bluetooth controllers with app-based user management simplify ongoing administration.

Browse the full range of gate automation products at Essential Security Supplies Gate Controllers, or contact our team for specification support on your project.
