Intercom Wiring Guide: 2-Wire, Cat6, PoE and Retrofit Considerations

Choosing the correct intercom wiring system is a critical decision for new buildings and retrofit projects. New Zealand installers must distinguish proprietary two-wire buses from IP systems, understand when Cat6 and PoE are appropriate, and inspect existing cables before promising a simple upgrade. The exact model and current installation manual always take precedence over generic wiring advice.

1. Compare 2-wire, Cat6 and PoE

These are not three interchangeable cable standards. A two-wire intercom typically uses a manufacturer-specific bus or a compatible two-wire IP transport. Cat6 is structured network cable. Power over Ethernet (PoE) delivers electrical power and data to compatible IP devices through Ethernet cable. An intercom can use Cat6 without supporting PoE. Likewise, a proprietary two-wire device cannot automatically communicate with a different manufacturer's two-wire equipment.

2. Two-wire systems and manufacturer compatibility

Two-wire systems can reduce building disruption when cables are concealed in walls or apartment risers. However, cable reuse is conditional. Identify conductor material and size, insulation condition, joints, cable length and the existing wiring layout. A cable that worked with an old audio handset may not satisfy a replacement video intercom's requirements.

BPT two-wire systems

BPT X1 is a dedicated bus architecture using compatible entry panels, indoor stations, power supplies and accessories. Its wiring rules should be taken from the exact system documentation. Explore the BPT intercom range and the BPT Lithos video intercom kit for matched equipment rather than mixing unrelated two-wire components.

Akuvox two-wire IP retrofits

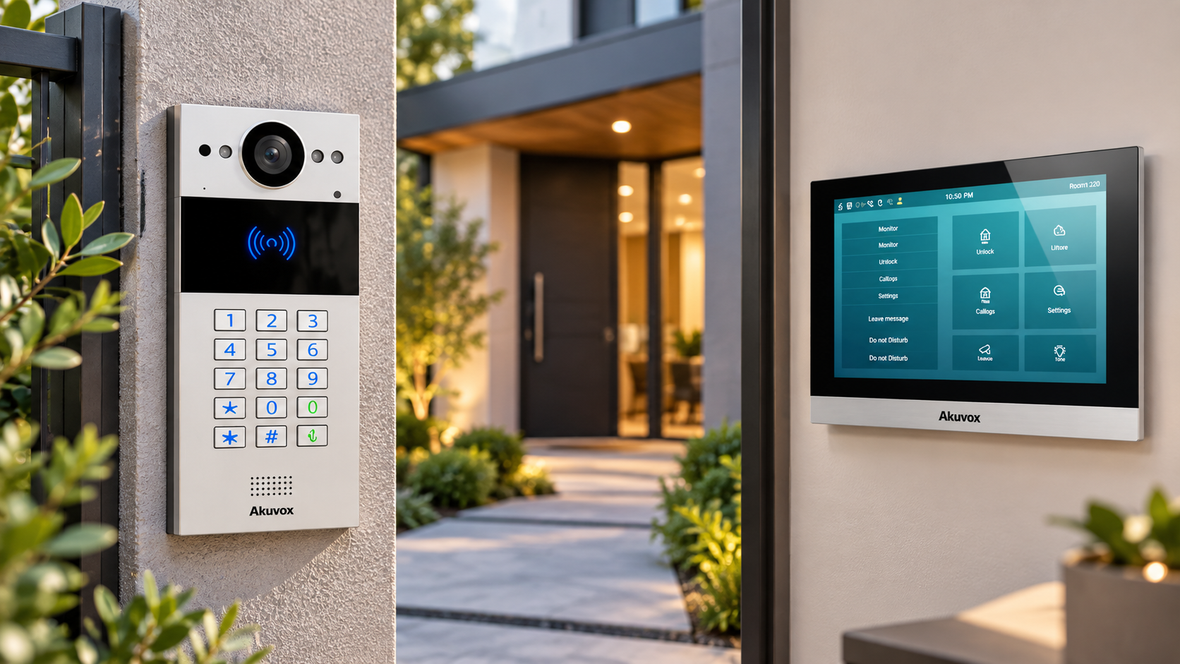

Akuvox offers compatible two-wire IP devices designed for certain retrofit applications. The Akuvox E12S-2 and C313W-2 kit is a matched door-station and monitor option. Its approved power supply, network connection, topology and cable distance must be checked against current documentation. Do not assume it is directly compatible with an existing BPT bus.

3. Cat6 wiring for IP intercoms

Structured Cat6 cabling is a practical choice for many new IP installations. It supports standard Ethernet networking, but the selected intercom's own cable and network specifications still govern the installation. Some models accept Cat5e, while other devices may use Wi-Fi or a dedicated bus for indoor stations. Do not specify a cable merely because it appears suitable for another product in the same brand.

Identify the entrance station, monitors, communications cabinet, switches, router, controllers and lock supplies before pulling cable. Provide accessible terminations, labels and a record of cable routes. Conventional copper Ethernet channels are generally limited to 100 metres including patch leads. Longer routes need an engineered extension method, fibre or a different approved system design.

Outdoor cable runs require appropriate environmental protection and consideration of surge exposure. Maintain the required separation from mains services and have regulated electrical work completed by appropriately qualified personnel. For suitable cabling options, browse the Cat6 and network cable range.

4. PoE and door-lock power planning

PoE allows compatible IP intercoms to receive data and power through Ethernet cabling. Before selecting a switch, check each device's supported PoE standard, maximum power draw, available power per port and the total switch budget. Include any other PoE equipment connected to that switch. A switch with enough ports may still lack sufficient electrical capacity.

Door-release wiring needs separate attention. Many intercoms offer dry relay contacts rather than a powered output suitable for a strike or magnetic lock. Confirm the lock voltage, current, duty cycle and any protective components required by the lock manufacturer. Do not assume the intercom's PoE connection can supply the lock. Assess applicable fire and egress requirements before deciding how the door should behave during power loss.

If the customer requires operation during an outage, consider backup power for the switch, router, intercom controller and lock supply, not just the entrance station. Test local operation independently of optional cloud services and mobile answering.

5. Retrofitting existing apartment intercom wiring

Start with a site survey. Identify the old entry panel, apartment handsets, power supplies, cable risers, joins and door-release equipment. Determine whether the original system uses a proprietary two-wire bus, multi-core audio wiring, coaxial video or Ethernet. Safely isolate legacy supplies before connecting replacement equipment. Photograph and label accessible connections.

Test the existing conductors using methods appropriate to the cable and equipment. Document inaccessible sections, damaged insulation and unidentified joints. Confirm whether the replacement system permits star wiring, branches or daisy chains, and whether distributors or termination components are required. A retrofit is not verified until the actual cable meets the selected manufacturer's requirements.

The Akuvox NS-2 is a dedicated component for compatible Akuvox two-wire IP designs. It is not a universal adaptor for other proprietary buses. Confirm supported devices, supply requirements, cable type, distance and network layout using the current manual.

New Cat6 may be preferable when the old cable is damaged, cannot be tested or does not support the chosen topology. It is particularly worth evaluating during major refurbishment, when routes are accessible and future expansion is likely.

6. Installation and commissioning checklist

• Record exact door-station, monitor, controller and power-supply models.
• Verify the current manufacturer wiring diagram and approved cable specification.
• Measure cable routes and test any conductors proposed for reuse.
• Confirm permitted topology, terminations and maximum distances.
• Calculate PoE per-port requirements and the total switch budget.
• Design lock power, relay wiring, protection and required egress behaviour.
• Document IP addressing, firmware, network access and cloud dependencies.
• Test audio, video, calling, door release and relevant failure conditions.
• Label cables and retain as-built documentation for maintenance.

For project options, browse intercom systems. Confirm exact product compatibility and current availability when preparing the specification.

7. Frequently asked questions

Can Cat6 cable be used for a two-wire intercom?

Only if the exact manufacturer approves that cable and the selected pairs, conductor size, topology and distance. The Cat6 label alone does not establish bus compatibility.

Can a BPT two-wire monitor be replaced with Akuvox?

Not as an assumed direct substitution. Use a documented compatible interface or design a complete migration to a matched system.

Can PoE power an electric strike?

Do not assume so. Check whether the intercom provides dry contacts or an approved powered output, then specify the lock supply independently where required.

Will an IP intercom operate without internet access?

Some systems retain local calling and door release while the local network and power remain available. Cloud-based mobile answering may be unavailable. Test the exact configured equipment.

When should existing cable be replaced?

Replace or redesign when its condition, length or topology cannot meet the replacement system's published requirements, or where future maintenance access makes reuse unsuitable.

8. Manufacturer documentation and installation references

Always use the installation guide for the exact hardware and firmware being fitted, rather than assuming that all models in a brand share the same wiring or power requirements. These references provide useful starting points:

• CAME BPT AGT V + Lithos installation manual (FA01429-EN, PDF) for kit components, bus connections, power and system limits.
• Akuvox official E12 model specifications for the distinction between E12S PoE models and the E12S-2 two-wire model, including its supported connections.
• Akuvox C313W-2 two-wire documentation for supported pairings, features and firmware-specific configuration guidance.

Documentation is model- and revision-specific. Check the manufacturer's current download or support centre before final specification and commissioning.
