Managed vs Unmanaged PoE Switches for Security Networks
Essential Security Supplies
For NZ installers: A four-camera installation and a multi-site CCTV network have different switching requirements. Compare the connectivity, power budget, VLAN support and fault-recovery features before choosing a PoE switch.
Choosing between managed and unmanaged Power over Ethernet (PoE) switches affects far more than the purchase price of a CCTV network. The right choice depends on how many cameras, intercoms or access-control devices will share the network, how faults will be investigated and whether the installation needs separation from the customer's other traffic. This guide explains the practical differences for New Zealand installers planning new systems and upgrades.
What does a PoE switch do?
A PoE switch carries network data and supplies compatible powered devices with electricity over the same Ethernet cable. Common security applications include IP cameras, video intercoms, wireless access points and selected access-control equipment. Check every device's supported PoE standard and power requirement before assigning it to a port. A switch described as eight-port PoE does not necessarily have enough power to run eight high-consumption devices simultaneously.
Managed and unmanaged switches: the essential difference
An unmanaged switch is generally plug-and-play. Once installed and powered, it forwards Ethernet traffic without exposing the administrative controls normally associated with managed models. It suits a small, uncomplicated network where connected devices can share the same network and there is no requirement for per-port monitoring or remote configuration. A managed switch adds administrative functions, which may include VLANs, port statistics, configurable link settings, access controls, quality of service and diagnostic tools. Available features vary significantly between manufacturers and product ranges, so check a specific model rather than assuming every managed switch supports every function.
Quick comparison
| Consideration | Unmanaged PoE | Managed PoE |
|---|---|---|
| Initial setup | Usually plug-and-play | Configuration and commissioning required |
| VLANs | Typically not configurable | Often supported, model-dependent |
| Port diagnostics | Usually basic LED indicators | Often detailed counters and port status |
| Remote troubleshooting | Limited | Possible where remote administration is securely configured |
| Best fit | Simple isolated installations | Multi-device or centrally managed networks |
When an unmanaged PoE switch makes sense
An unmanaged model can be appropriate for a small, dedicated CCTV installation with predictable traffic, a straightforward cable layout and local access for maintenance. There is less configuration to document, making replacement relatively simple when a like-for-like model has adequate ports and power. Simplicity is not the same as automatic security, however. If an unmanaged switch is connected to a wider office network, appropriate segmentation and access controls may still need to be implemented at the upstream router, firewall or managed switch. Some unmanaged security switches have fixed port-isolation or long-range modes selected by a physical switch. Those features are not the same as configurable VLANs, traffic monitoring or remote management. Check the exact hardware specification. An unmanaged model is also a poor substitute for a design that requires remotely disabling a troubled port or examining traffic patterns.
When a managed PoE switch earns its place

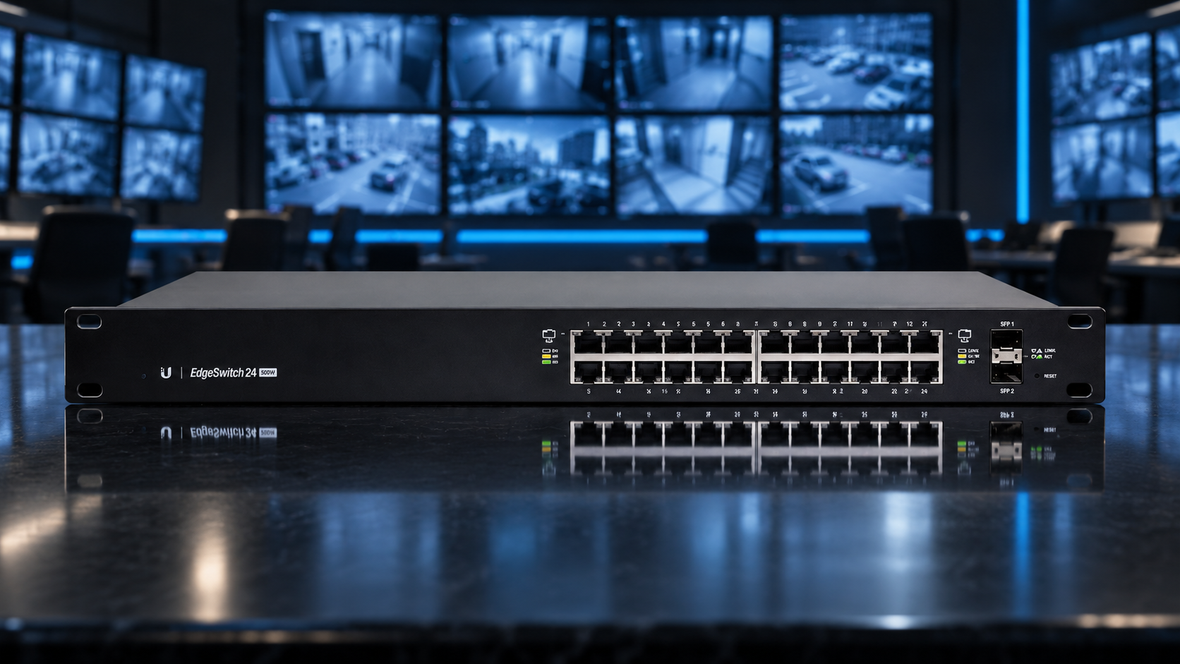

Managed switching becomes useful where CCTV, access control, intercoms, Wi-Fi and business data share physical infrastructure. On suitably equipped models, virtual LANs (VLANs) can help separate device groups, while port-level statistics assist fault finding. Some managed models permit remote power cycling of individual PoE ports, which may help recover an unresponsive camera without sending a technician to site. Never assume that the presence of a management interface guarantees remote PoE restart, PoE scheduling or advanced security features. As a concrete example, the Ubiquiti EdgeSwitch ES-24-250W has 24 Gigabit Ethernet ports, two SFP uplinks and a published 250 W PoE budget, but its device-specific features and supported powering modes should be checked against the manufacturer's specification. Review the manufacturer's model-specific documentation.
VLANs and network security
VLANs logically separate traffic on a shared switching infrastructure. For example, a security installation may have separate CCTV and corporate-data VLANs, with inter-VLAN access limited by routing and firewall policy. VLANs alone are not a firewall and do not stop all threats. A proper design should consider device credentials, firmware updates, management access, logging and which systems legitimately need to communicate. Confirm that uplinks, network recorders and other connected equipment are configured consistently. Incorrect VLAN tagging is a frequent cause of apparently offline devices during commissioning.
PoE standards and power budgets
IEEE 802.3af provides up to 15.4 W at the sourcing equipment, 802.3at up to 30 W and 802.3bt supports higher-power types up to 60 W or 90 W at the source, depending on the type. Actual power available at the powered device is lower after cable losses. A switch can support a standard on individual ports yet have an aggregate power budget that is too small to run all ports at their rated maximum simultaneously. For example, eight cameras rated at a maximum of 12 W each require 96 W before allowances for other devices and load peaks. A switch advertising eight PoE+ ports may still have a combined budget below that figure. Add up each device's maximum specified power draw, allow for start-up or peak loads, and check the total against the switch's published shared budget. For the maximum power classifications, refer to Cisco's IEEE PoE standard overview. Outdoor cameras with heaters, IR illumination or PTZ motors deserve particular attention.
Port count, uplinks and bandwidth
Count current powered devices, non-PoE devices and reasonable expansion separately. Check which physical ports offer PoE and whether uplink ports are dedicated or shared. An eight-camera system does not necessarily fit comfortably on an eight-port switch if the recorder and uplink also need connections. Network throughput must also be considered: camera bitrate, uplink capacity, simultaneous viewing and recording traffic can make a nominally sufficient port count inadequate. Gigabit uplinks are commonly useful, while larger installations may require multi-gigabit or fibre uplinks. A managed switch cannot compensate for an undersized uplink.
Remote recovery and monitoring
Remote PoE cycling can reduce site visits, but only if the selected managed switch genuinely supports it and its administration interface is reachable through an appropriately secured management path. Avoid exposing switch management directly to the public internet. Prefer role-based access where available, strong credentials, current firmware and controlled remote access such as a business VPN. For resilient installations, also consider UPS capacity: restarting a camera remotely will not help if the cabinet has lost power. Record the management IP address, port assignments, VLANs and device names in the handover documentation.
Installation and commissioning checklist
Before installation, confirm cable type and condition, maximum permitted channel length, environmental temperature and the cabinet's ventilation. Match the camera and intercom power specifications to individual port capabilities and the switch's combined PoE budget. For managed switches, plan management addressing, VLAN IDs, uplink tagging, passwords, firmware and monitoring before arriving on site. During commissioning, verify every device's negotiated speed, actual PoE load where available, image or intercom performance and expected failover behaviour. Save the approved switch configuration and maintain a clear port schedule. See our managed PoE switches and PoE accessories categories for suitable equipment options.
Common selection mistakes
Do not select a switch by port count alone, and do not confuse the maximum wattage printed beside an individual port with the total system power budget. Do not assume all managed switches have remotely controllable PoE, that every device supports PoE+, or that VLANs automatically secure a network. Avoid creating a single point of failure without discussing uptime requirements, spare capacity and backup power with the customer. On simple sites, excessive configuration may increase maintenance complexity; on complex sites, a basic unmanaged switch may make troubleshooting needlessly difficult.
Frequently asked questions
Will a managed switch improve camera image quality?
Not by itself. Management features can help diagnose congestion and configuration faults, but image quality chiefly depends on camera settings, network capacity and the recording or viewing system.
Can managed and unmanaged switches be mixed?
Yes, provided the design accounts for uplinks, VLAN handling and the visibility lost at unmanaged portions of the network.
Is a managed switch essential for four cameras?
No. A small, dedicated four-camera installation can work well with an appropriately specified unmanaged PoE switch. Choose management features when the network design, support arrangements or security requirements justify them.
NETGEAR and TP-Link PoE switches for NZ security installations
NETGEAR and TP-Link give installers further choices alongside Dahua, Uniview and Ubiquiti. For an accurate comparison, look at each specific model's management features, PoE standard, shared power budget and uplink capacity. An active ESSL product listing does not guarantee immediate availability; check current stock before specifying a switch.
NETGEAR: simple unmanaged networks and configurable PoE++
For a larger plug-and-play CCTV network, the NETGEAR GS524PP is an unmanaged 24-port Gigabit PoE+ switch with a published 300 W shared PoE budget. It is a practical example of why a higher PoE budget and more ports do not necessarily mean a switch has VLAN configuration or remote diagnostics. Check port-level power requirements and current availability before ordering.
Where higher-power devices and monitoring matter, compare the NETGEAR MS108EUP, an eight-port 2.5G Ultra60 PoE++ Ethernet Plus switch. Check its model-specific management features rather than treating a Plus switch as equivalent to every fully managed Layer 2 or Layer 3 product.
TP-Link: unmanaged PoE+ and Omada smart management
For straightforward unmanaged PoE+, the TP-Link TL-SG1008MP offers eight Gigabit PoE+ ports and a published 124 W combined PoE budget. For installations requiring VLAN configuration and managed uplinks, the TP-Link Omada TL-SG2210P is a smart managed option with eight Gigabit PoE+ ports, two Gigabit SFP slots and a 61 W shared PoE budget for the listed model. Check the hardware revision and Omada controller compatibility before specifying centralised management.
Installer comparison: On an uncomplicated dedicated camera network, compare the unmanaged NETGEAR GS524PP and TP-Link TL-SG1008MP with Dahua and Uniview alternatives. For VLANs, management and diagnostic requirements, compare NETGEAR MS108EUP and TP-Link TL-SG2210P with the Ubiquiti models discussed above. Check each model's actual functions, total PoE budget, stock status and support requirements rather than selecting by brand alone. Browse ESSL's unmanaged switches and managed PoE switches for the wider range.
Choosing for your next project
Start with the site's network topology and maintenance requirements rather than a blanket preference for either switch type. For a simple, dedicated installation, an unmanaged model may offer the necessary connectivity with fewer configuration tasks. For systems that share infrastructure, require VLANs or benefit from remote diagnostics, compare managed models feature by feature. Compare the Dahua DH-PFS3005-4P-58 unmanaged switch and the Uniview NSW2020-6T-POE-IN unmanaged switch against the NETGEAR GS524PP and MS108EUP, TP-Link TL-SG1008MP and TL-SG2210P, and a managed option such as the Ubiquiti ES-24-250W. Browse the PoE switches range at Essential Security Supplies and confirm the exact manufacturer's specifications before ordering.
