ONVIF Explained: Mixing Cameras and NVRs Without Compatibility Problems
Essential Security Supplies
Mixing IP cameras and network video recorders from different manufacturers can give security installers far more flexibility when upgrading or expanding a CCTV system. A site might already have Dahua cameras, need a new FERN360 recorder, require a UniView camera for a specialist location, or use TVT cameras elsewhere on the property.
This is exactly the type of situation ONVIF is designed to simplify.
ONVIF provides standardised interfaces that allow compatible IP security devices from different manufacturers to communicate. In practical terms, it can allow a camera from one manufacturer to send video to an NVR from another. However, ONVIF compatibility does not mean every feature will work across every brand.
Live video and basic recording may work perfectly while advanced analytics, two-way audio, smart motion detection, alarm functions or camera configuration features remain unavailable. For New Zealand installers working with FERN360, Dahua, TVT and UniView, understanding that distinction is essential.
What Is ONVIF?
ONVIF is an international industry initiative that develops interoperability standards for IP-based physical security equipment. Instead of every camera manufacturer relying only on proprietary communication methods, ONVIF defines common interfaces that compatible cameras, NVRs and video management systems can use.
A typical mixed-brand connection might look like:
UniView camera → ONVIF → FERN360 NVR
or:
Dahua camera → ONVIF → TVT NVR
Provided both devices support compatible ONVIF functionality, the recorder may be able to discover the camera, authenticate with it and receive its video stream.
ONVIF can be useful when replacing a failed camera, upgrading an existing CCTV system, retaining cameras while replacing an NVR, adding specialist cameras from another manufacturer, migrating a site between platforms or supporting legacy IP equipment.
ONVIF Does Not Mean Everything Works
This is the most important point for installers to understand. Seeing “ONVIF compatible” on both the camera and recorder does not guarantee complete cross-brand functionality.
ONVIF defines specific sets of interoperable functions through profiles. Two products may communicate successfully while still exposing different features.
| Function | Typical mixed-brand result |
|---|---|
| Live video | Usually available |
| Continuous recording | Usually available |
| Playback | Usually available |
| Main and sub streams | Often available |
| Basic motion events | Often available |
| PTZ control | Model and profile dependent |
| Audio | Model and profile dependent |
| Two-way audio | Less predictable |
| Camera-side analytics | Often limited |
| Human or vehicle classification | Frequently proprietary |
| ANPR metadata | Must be verified |
| Smart search | Usually best within one ecosystem |
| Firmware management | Normally manufacturer-specific |
ONVIF should therefore be treated as an interoperability framework rather than a guarantee of complete feature parity.
Profile T Is Increasingly Important
Installers have traditionally encountered ONVIF Profile S, which was developed primarily around IP video streaming. ONVIF has announced that support for Profile S will end on 31 March 2027 and recommends Profile T for newer surveillance products.
Existing Profile S equipment does not suddenly stop operating, but for new projects installers should look beyond a simple “ONVIF compatible” statement and determine which ONVIF profiles are actually supported.
ONVIF Profile T
Profile T is intended for modern IP video applications and includes support for functions such as H.264 and H.265 video, imaging configuration, motion and tampering events, metadata streaming, bidirectional audio where supported, PTZ functionality where supported and secure HTTPS streaming where implemented.
For current CCTV projects, Profile T is generally the profile installers should look for when assessing new camera and recorder combinations.
ONVIF Profile G
Profile G relates primarily to recording and edge storage. It can support functions involving recording configuration and retrieval of footage stored on compatible devices, such as cameras with onboard microSD recording.
Profile G should not be confused with the basic ability of an NVR to record a camera's live stream.

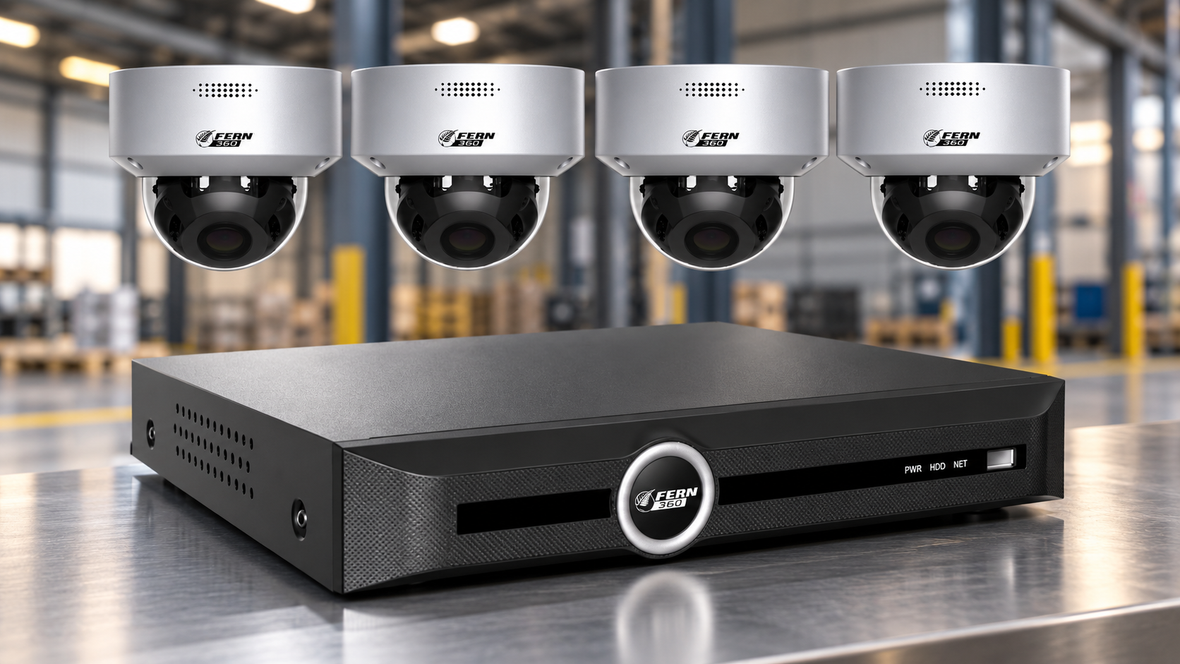

Mixing FERN360 Cameras and NVRs
FERN360 provides professional IP cameras and network video recorders suitable for commercial surveillance installations. Depending on the model, cameras can include H.265/H.264 compression, PoE, wide dynamic range, low-light imaging, intelligent video functions, onboard microSD storage and fixed or motorised varifocal lenses.
Where supported, FERN360 equipment can be used with ONVIF-compatible third-party devices. This can be particularly useful during system upgrades where an installer wants to replace the recorder first and retain compatible cameras until they are replaced progressively.
The important point is to test the required functions. A third-party camera may supply excellent video to a FERN360 recorder while some advanced analytics remain unavailable.
Mixing Dahua Equipment With Other Brands
Dahua offers a broad professional CCTV ecosystem covering conventional IP cameras, intelligent cameras, PTZ systems, ANPR solutions, thermal products and network recorders.
A compatible Dahua camera can often be added to a third-party NVR using ONVIF. Likewise, a compatible third-party ONVIF camera may often be added to a Dahua recorder.
The distinction is between video compatibility and feature compatibility. A Dahua camera may provide normal video and recording through ONVIF while advanced Dahua-specific analytics, smart search functions or recorder-assisted features require a Dahua-to-Dahua connection.
Mixing TVT Cameras and NVRs
TVT provides IP cameras and NVRs for residential, SME and commercial surveillance projects. Supported models can include H.265 recording, PoE, tripwire, intrusion detection and human or vehicle classification.
When a TVT camera is connected to another manufacturer's recorder through ONVIF, installers should separately verify live video, recording, motion events, audio, PTZ functions where applicable and intelligent analytics.
Basic surveillance functions may work correctly even if some TVT-specific intelligent functions are not exposed to the third-party recorder. The same principle applies when third-party cameras are connected to a TVT NVR.
Mixing UniView Cameras and NVRs
UniView is widely used in professional IP surveillance and offers fixed cameras, active-deterrence cameras, panoramic cameras, PTZ systems, ANPR equipment and PoE recorders.
For straightforward surveillance, ONVIF can make compatible UniView cameras practical candidates for integration with other recorder brands. However, installers specifying advanced functions should check compatibility carefully.
A UniView camera connected to another manufacturer's recorder may supply excellent H.265 video while specialist functions such as intelligent intrusion detection, human or vehicle classification, active deterrence, ANPR metadata or advanced event searching work differently or are unavailable.
Why Analytics Cause the Most Compatibility Problems
Video streaming is comparatively straightforward. Analytics are more complex.
A camera might identify a person entering an intrusion zone, but the recorder also needs to understand the event information generated by that camera. Manufacturers often build proprietary analytics frameworks around standard video transport.
This means a mixed-brand system might record the camera correctly but treat it primarily as a conventional video stream.
Functions that may be reduced or unavailable include human filtering, vehicle filtering, facial metadata, line-crossing classification, intrusion classification, people counting, ANPR data, smart playback and advanced event searching.
Where analytics are central to the security design, using cameras and recorders from the same ecosystem generally gives the most predictable result.
Resolution and Bandwidth Still Matter
ONVIF compatibility cannot overcome the physical limits of an NVR.
A recorder may support ONVIF cameras but still have restrictions on maximum camera resolution, incoming bandwidth, recording bandwidth, decoding capacity, simultaneous playback channels, frame rates and supported codecs.
An 8MP camera should therefore not automatically be assumed to operate at full specification simply because the recorder discovers it successfully.
For larger commercial systems, check both the maximum supported resolution and total incoming bandwidth before finalising the design.
H.265 and Codec Compatibility
H.265 can reduce network bandwidth and storage requirements compared with older compression formats. Profile T includes support for modern H.264 and H.265 video streaming.
However, manufacturer-enhanced compression modes can introduce another compatibility issue. When connecting a camera to another brand of recorder, it may be preferable to use standard H.265 or H.264 rather than assuming a manufacturer's proprietary enhanced compression mode will be understood by the NVR.
PoE Compatibility Is Separate From ONVIF
ONVIF controls network interoperability. It does not determine whether a camera can be safely powered.
Installers should separately check the IEEE PoE standard, camera maximum power draw, NVR PoE port limit, total recorder PoE budget, cable length and cable quality.
This is particularly important with PTZ cameras, cameras with heaters, high-output IR, active-deterrence cameras, multi-sensor units and specialist ANPR cameras.
A camera can be completely ONVIF compatible and still exceed the available PoE power budget.
Use Correct Camera Credentials
Third-party cameras normally require the correct IP address, username, password and protocol settings before the recorder can authenticate successfully.
Incorrect credentials are one of the most common reasons a camera is discovered but remains offline.
Installers should also avoid leaving devices on default passwords and should maintain firmware in line with manufacturer recommendations.
Practical Mixed-Brand Commissioning Checklist
- Confirm the ONVIF profile. Check whether both devices support compatible profiles, with Profile T preferred for current equipment.
- Add the camera manually if required. Automatic discovery does not always locate every device.
- Confirm live video. Check main and sub streams.
- Check recording. Verify continuous, scheduled and event recording as required.
- Test playback. Confirm recorded footage can be searched and replayed.
- Test motion events. Verify events generated by the camera are recognised by the recorder.
- Check advanced analytics. Test every required human, vehicle, tripwire, intrusion or ANPR function.
- Check audio. Verify microphone recording and two-way audio where required.
- Check PTZ. Confirm pan, tilt, zoom, presets and patrol functions where applicable.
- Document the final configuration. Record firmware versions, IP settings and any features unavailable across brands.
When Should Cameras and NVRs Stay the Same Brand?
Use a matched camera and recorder platform where the project relies heavily on advanced AI analytics, facial recognition, ANPR, intelligent search, active deterrence, people counting, advanced PTZ automation, manufacturer-specific alarm integration or centralised device configuration.
For straightforward live viewing and recording, mixed-brand ONVIF systems can work very well. For advanced analytics, a matched ecosystem generally provides greater certainty.
When Does Mixing Brands Make Sense?
Mixed-brand installations are particularly useful when upgrading existing sites. A commercial building may have 20 functioning IP cameras but an ageing NVR. Replacing every camera solely because the recorder is being upgraded may be unnecessary.
If the cameras and new recorder provide suitable ONVIF interoperability, the installer may be able to retain the existing cameras and replace them progressively.
Another site might predominantly use FERN360 cameras but require a specialist UniView, Dahua or TVT camera for a particular location. ONVIF gives installers more freedom to design around the application rather than being restricted solely by brand.
Can FERN360, Dahua, TVT and UniView Be Mixed?
Potentially, yes. All four brands offer IP surveillance equipment designed for modern network environments, and supported devices may interoperate through ONVIF.
The correct question is not simply:
“Does it support ONVIF?”
The better question is:
“Which functions will this exact camera provide when connected to this exact NVR?”
That distinction prevents many compatibility problems before installation begins.
Final Recommendation
ONVIF has made mixed-brand IP CCTV considerably easier, allowing installers to combine cameras, NVRs and video management systems without being completely locked into one manufacturer.
For standard surveillance, compatible products from FERN360, Dahua, TVT and UniView can potentially be combined successfully.
The safest approach is to favour current Profile T equipment, verify profiles on both devices, check resolution and bandwidth limits, use standard H.264 or H.265 where appropriate, verify PoE separately, test motion and analytics, and never assume proprietary AI features will transfer between brands.
For commercial installations where advanced analytics are essential, matching the camera and recorder ecosystem is generally the most predictable solution.
For upgrades, replacements and straightforward recording applications, ONVIF gives installers valuable flexibility.
Essential Security Supplies stocks professional surveillance equipment across FERN360, Dahua, TVT and UniView ranges for New Zealand security installers. If you are unsure whether a particular camera and recorder combination is suitable, contact the ESSL team before ordering so the required functions can be checked.
Frequently Asked Questions
Can I use a Dahua camera on a FERN360 NVR?
Potentially, yes, where the camera and recorder support compatible ONVIF functionality. Basic video and recording may work while some Dahua-specific analytics or configuration functions may not be available.
Can I use a UniView camera on a TVT NVR?
A compatible ONVIF UniView camera may be able to connect to a TVT NVR, but the exact functions available depend on the models, firmware and supported ONVIF profiles.
Does ONVIF guarantee CCTV compatibility?
No. ONVIF provides standardised interoperability for defined functions. It does not guarantee that every proprietary feature of one manufacturer will work with another manufacturer's recorder.
Should I still buy Profile S cameras?
Existing Profile S systems can continue operating, but ONVIF has announced the end of Profile S support on 31 March 2027 and recommends Profile T for newer surveillance products.
Will AI detection work through ONVIF?
Sometimes, but it should always be tested. Basic motion events are more likely to transfer successfully than manufacturer-specific AI functions such as human classification, vehicle classification, facial analytics or ANPR.
