Thermal vs Optical CCTV Cameras: Where Thermal Surveillance Makes Sense
Essential Security Supplies
Thermal vs optical CCTV cameras: thermal cameras detect differences in emitted infrared radiation and are often preferred for perimeter intrusion detection in darkness; optical CCTV records visible scene detail that can support recognition and identification when resolution, distance and lighting are adequate. For New Zealand farms, warehouses and commercial facilities, the most effective design may pair thermal detection with optical verification rather than treating the two technologies as interchangeable.
Thermal vs optical CCTV: quick comparison
Use this side-by-side guide to decide which technology is suited to the evidence and response required. Performance is model-specific and must be confirmed by a site survey.
| Requirement | Thermal CCTV | Optical CCTV |
|---|---|---|
| Primary strength | Detects heat contrast and moving targets | Captures visible detail and context |
| Complete darkness | Can detect without visible illumination, subject to thermal contrast | Requires suitable light, IR illumination or another night-vision method |
| Identity and clothing colour | Generally unsuitable for ordinary facial or colour identification | Possible with sufficient pixels on target, lens, lighting and exposure |
| Fog, smoke and rain | May retain an advantage in some conditions, but performance can deteriorate | Image quality can fall sharply with reduced visibility |
| Glass and solid barriers | Does not see through walls or ordinary window glass | Can view through glass where reflections and lighting permit |
| Perimeter detection | Often effective for early warning across suitable open areas | Useful for detailed verification and evidence once activity is detected |
| Typical investment | Often higher camera cost; assess total project cost | Often lower cost for conventional coverage, depending on specification |
Match the camera to the evidence task
Begin with detection, recognition or identification as an explicit objective, defining what the operator must distinguish. A thermal outline can reveal activity without providing a facial identity or colour detail. An optical camera may give richer evidence when lighting and distance suit the scene. Do not use the word identification ambiguously: distinguishing a human from an animal is different from identifying a particular person.
Which CCTV technology should you choose?
Choose thermal when detection comes first
Consider thermal for dark or poorly lit perimeter boundaries, remote assets and large outdoor areas where the first priority is detecting an approaching person or vehicle. Specify detection range for the actual target size, thermal contrast and lens, not a generic marketing distance.
Choose optical when visual evidence comes first
Choose suitable optical cameras for entrances, reception areas, loading docks and vehicle access points where clothing, colour, facial detail or vehicle characteristics matter. Verify the pixels on target and the usable night-time image instead of relying on megapixels alone.
Combine thermal and optical when both outcomes matter
For monitored perimeters, use a thermal alarm to direct attention to a matching optical view. A dual-spectrum camera can simplify mounting and correlation, while two separate cameras may offer better independent framing. Confirm alert integration, recording, retention and operator response with the proposed NVR or VMS.
Assess thermal contrast and obstructions
Thermal performance depends on target and background contrast, lens, distance and conditions. It does not see through walls, and ordinary glass is a significant limitation for relevant thermal wavelengths. Rain, vegetation and scene temperature can also affect useful detection. Trial the actual perimeter under representative conditions. A headline range measured for a particular target does not establish reliable performance across every part of a site.
Separate surveillance from temperature measurement
Not every thermal camera is a calibrated temperature measurement device. Where process monitoring or a temperature alarm is required, verify radiometric support, accuracy conditions and the correct model variant. Avoid presenting thermal security surveillance as a medical diagnostic service. Fire-related analytics likewise do not automatically replace a required fire detection system. Keep the approved purpose and system responsibility clear.
Plan the optical verification view
Use an optical camera or supported hybrid assembly to help an operator understand the detected event. Align the relevant scenes and confirm whether an alarm opens the correct view. Check lighting and night evidence separately. A thermal event that cannot be verified may create operational uncertainty rather than a useful response. Record who receives the event and what action they can take.
Select the lens through a site trial
Compare the coverage width and target detail at the intended distance. A narrower thermal field can provide more target pixels while reducing the area covered. Check obstructions and realistic movement directions. Test several representative targets and note non-events that should not alarm. Keep the selected thermal palette and analytic configuration in the commissioning record without implying that a visually dramatic palette improves detection.
Specify exact thermal candidates
The Essential Security Supplies range includes Dahua TPC-BF5401 and TPC-BF5421-T candidates. Verify the supplied lens and current manufacturer documentation, because related model names can cover different assemblies. Compare their intended function with the optical IPC2128SB candidate. State the required integration and acceptance cases in the quotation. Avoid brand-wide temperature or range claims that are not supported for the exact proposed unit.
New Zealand applications: farms, warehouses and industrial sites
Rural farms and isolated buildings
At farm entrances, machinery sheds and remote yards, thermal may offer a useful alert where lighting is limited. Check detection zones against livestock, vegetation movement, changing ground temperatures and access tracks. Use optical coverage at gates to obtain evidence of people and vehicles where feasible.
Warehouses, logistics yards and loading areas
Thermal can help flag movement on unlit boundaries, while optical cameras should cover goods handling, number plates and entry points at suitable distances. Plan around headlights, external floodlights, parked trucks and blind spots created by containers or pallets. A thermal alert alone is not proof of an intrusion.
Industrial facilities and critical infrastructure
For substations, utilities and large industrial perimeters, document the required alarm probability, nuisance-alarm tolerance and response time. Validate thermal coverage under local rain, coastal weather or temperature conditions. Where temperature monitoring is proposed, select a specifically suitable radiometric camera rather than assuming every security thermal model can measure equipment temperatures.
For all NZ sites, consider privacy signage, camera angles, retention, who can access recorded footage and the Privacy Commissioner's guidance. Confirm suitable power, network resilience and maintenance access before finalising the equipment schedule.
Apply the design to the actual project
Write a detection trial around the target, distance and scene, with explicit non-target cases. Test the person or vehicle movement that matters and review the thermal event together with the optical evidence. Capture conditions such as rain, vegetation and background temperature where practical. Where seasonal conditions cannot be demonstrated on the day, retain the design assumptions and define a follow-up test. Do not convert a manufacturer's range table into an unconditional site guarantee.
Keep the thermal purpose visible in the handover. For surveillance, explain what the operator can infer from a target outline and what needs visual confirmation. For a radiometric application, retain the measurement settings and the manufacturer's accuracy conditions, with the process owner approving thresholds. Do not use the security camera's analytics as a substitute for a mandated fire or medical system. Give each event a response owner and test that the correct scene is available when an alert arrives.
Commission evidence quality and failure recovery
Test the recorded image at the actual distance where the event matters. Use someone walking through the scene and a representative vehicle where relevant. Review the result on the client workstation, then export a short clip and open it independently. Live viewing, playback and export are different stages, and all three should pass. Include daylight, darkness and a transition in lighting when the objective depends on continuous coverage. Note any zone where the required detail is not achieved.
Disconnect an authorised test camera or network link under a controlled commissioning plan. Confirm that the fault reaches the responsible operator and that normal recording resumes after restoration. Where local recording or automatic retrieval is required, demonstrate that behaviour with the selected firmware and client. Do not assume that an SD-card slot or an interoperability logo proves that missing footage will be recovered. Record the outage interval, expected behaviour and actual result.
Commissioning acceptance checklist
Agree the expected result before testing. Use the installed configuration and retain evidence of each outcome, including a failure that must be corrected. The following checks supplement the exact manufacturer procedures and the approved project design.
| Required check | Record to retain |
|---|---|
| Trial representative targets and backgrounds at the required perimeter distances. | Expected behaviour, actual result, configuration tested and responsible person. Resolve an unexpected outcome before accepting this requirement. |
| Verify optical event linkage and night evidence for the detected area. | Expected behaviour, actual result, configuration tested and responsible person. Resolve an unexpected outcome before accepting this requirement. |
| Confirm radiometric or fire-related claims separately against the exact model. | Expected behaviour, actual result, configuration tested and responsible person. Resolve an unexpected outcome before accepting this requirement. |
Repeat affected checks after a material equipment, software or site change. Keep the test record with the as-built schedule so the next maintainer can understand which configuration passed and which assumptions still need review.

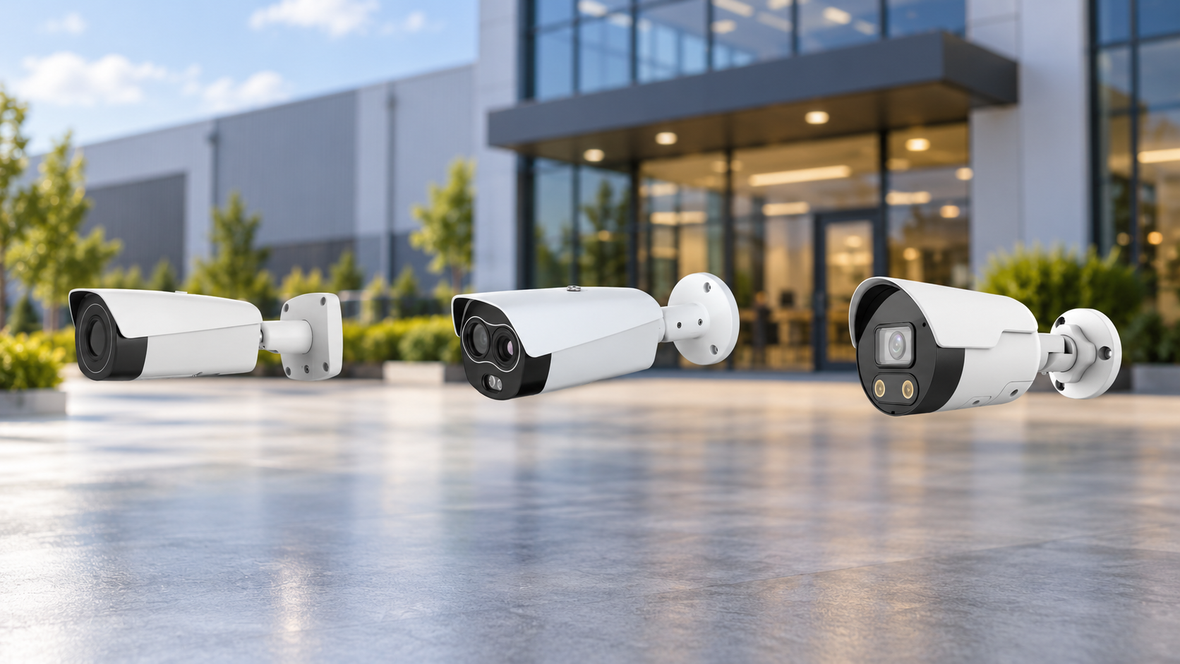

Equipment candidates and specification checks
These are relevant active catalogue candidates for a project review, rather than a universal recommendation or a promise of immediate stock. Use the full product page and current manufacturer information to confirm the supplied variant and its role in your design.
- TPC-BF5401 - Dahua Thermal Imaging Network Bullet Camera. Consider it for dedicated thermal detection where visible-light detail will be provided separately. Verify the lens, rated target detection distances, analytics and integration for the intended scene.
- TPC-BF5421-T - Dahua Thermal Network Hybrid Bullet Camera. Consider this hybrid candidate where linked thermal detection and an optical verification view are both required. Verify the exact sensor arrangement, fields of view, supported event linkage and recorder compatibility.
- IPC2128SB-ADF28KMC-I0 - UniView 8MP HD Fixed Active Deterrence Camera. Consider this optical active-deterrence candidate where visible detail and supported on-camera warning functions matter. Confirm night illumination, active-deterrence behaviour, identification distance and VMS compatibility.
Review the relevant Essential Security Supplies equipment range alongside the intended workflow. For further context, read our related installer guide.
Frequently asked questions
Does thermal CCTV identify faces?
It does not provide ordinary visible facial detail. Use an appropriate optical evidence path for personal identification.
Can thermal cameras see through normal window glass?
Do not assume that they can. Relevant long-wave thermal imaging is obstructed by ordinary glass.
Does every thermal camera measure temperature accurately?
No. Verify radiometric capability and measurement conditions for the exact model.
Primary references and technical scope
Use the primary manufacturer or technical reference for the claims it covers. General design guidance does not replace the selected product's installation manual. Confirm current firmware, model variants and the approved project requirements before ordering or commissioning.
For site policy, consult the New Zealand Privacy Commissioner's CCTV guidance.
