Shielded vs Unshielded Cat6 Cable for CCTV and Access Control Installations

Choose shielded or unshielded Cat6 by assessing the electrical environment, equipment instructions and complete termination system. Shielding can help control electromagnetic interference, but it is not a substitute for correct routing, compatible connectors or suitable environmental protection. Unshielded Cat6 can suit many indoor links when the installation and equipment permit it. For NZ CCTV and access control, specify the complete cable system rather than choosing by jacket colour or a general belief that more shielding is always better.

Separate cable category from shielding and environment

Cat6 describes transmission performance requirements. It does not by itself specify shielding, UV resistance, water blocking or burial suitability. U/UTP has no overall screen or individual pair screens. F/UTP uses an overall foil screen around unshielded pairs; other constructions use different combinations. Read the manufacturer's exact construction rather than treating every product described as STP as identical.

The same category can appear in indoor, external and industrial cable variants. A shielded indoor cable may still be unsuitable on an exposed camera pole. An external unshielded cable may have a suitable jacket but fail an equipment instruction requiring a screened connection. Record category, screen construction, conductor material and environmental rating as separate items in the specification.

Survey the interference environment before ordering

Map the route alongside motors, drives, switching equipment, lighting supplies, radio equipment and mains services. Look at cable runs through plant rooms and across workshops, not just the quiet room containing the recorder. Include both permanent cable and patch leads because the final link is only as suitable as its weakest section.

Axis recommends screened cable in demanding electrical environments and requires it for outdoor use within its stated product guidance. That is manufacturer-specific guidance, not proof that every other camera has the same requirement. Obtain the installation instructions for the cameras, switches, intercoms and controllers actually proposed. Resolve conflicting requirements before the cable is installed.

Routing remains important even with screening. Maintain the separation and installation arrangements required for the site and its services. Do not run a data cable beside a major interference source simply because its reel says shielded. If a route cannot be made suitable, consider another path or an appropriately designed fibre link rather than relying on an untested workaround.

Design screen continuity and bonding as a system

Screen performance depends on the cable, compatible plugs or jacks, patching hardware and the equipment's bonding arrangement. A foil screen cut away at an unshielded connector does not create the intended end-to-end screened system. Follow the component manufacturer's preparation instructions and preserve the specified contact arrangement without leaving loose drain wires or foil near signal contacts.

Avoid blanket advice to earth a screen at only one end or both ends in every installation. The correct arrangement follows the selected system, equipment instructions, equipotential bonding design and applicable installation requirements. Where buildings or structures may have different electrical potentials, involve the responsible designer. A screen is not a protective earth conductor and must not be improvised as one.

Copper between separate buildings also needs a surge and potential-difference assessment. Fibre can provide a non-conductive data path, but local powered equipment still needs its own suitable supply and protection. Choose the architecture deliberately. Adding a screen alone does not make a copper link immune to lightning or eliminate the need for correctly selected surge protection.

Confirm the cable suits the actual interface

An RJ45 connector does not prove that a port is Ethernet or accepts PoE. Some security products use RJ45 connectors for proprietary buses or other functions. Confirm the interface before connecting a tester, injector or switch. Never apply PoE to an unidentified port merely because a network plug fits.

Likewise, do not assume Cat6 is the correct cable for every reader bus or alarm connection. Protocol instructions may specify impedance, pair assignment, screen arrangement, conductor size and maximum topology. Choose the cable required for that exact interface. A screened Ethernet cable and a screened control-bus cable are not automatically interchangeable.

Match conductors, connectors and PoE duty

Select solid copper conductors and compatible termination hardware for the specified permanent installation. Check conductor diameter, insulation diameter, jacket size and whether the plug supports solid or stranded conductors. Category markings alone do not establish compatibility. Preserve pair twist as instructed and avoid nicking conductors when removing the jacket.

For PoE, assess the complete channel's resistance, connection quality, operating temperature and cable grouping. A camera starting in daylight may draw differently when its illuminator, heater or motor operates. Check the powered device requirement and switch budget using their exact specifications. Shielding does not supply additional power or correct excessive voltage loss.

Use the project-specified permanent-link and channel limits. Ordinary balanced copper Ethernet designs commonly use a maximum 90 m permanent link and 100 m channel, subject to the selected cabling system and application. Extender modes and proprietary long-range functions are separate designs; a shielded reel does not authorise exceeding standard channel limits.

Compare four practical installation scenarios

For a simple indoor link, a suitable U/UTP system can avoid unnecessary screened termination complexity. At an exposed gate, the same choice cannot be repeated without checking environmental and equipment requirements. Document why each route uses its selected cable. That explanation helps prevent an installer substituting a cheaper indoor cable during a later repair.

Test the completed link and document the limits

Verify wiremap and inspect every termination, then perform the qualification or certification required by the contract. Check screen continuity where applicable using suitable equipment. A screen continuity indication is useful but does not prove the complete bonding design or transmission performance is correct. Keep the test method and selected limits with each result.

Run functional tests through the installed switch and camera, including expected power demand and representative network traffic. Record cable identifier, route, product code, connector type and test result. Photograph accessible terminations before closing enclosures. Hand over a clear distinction between what was verified, qualified or certified so the client receives evidence matching the claim.

Equipment selection and technical references

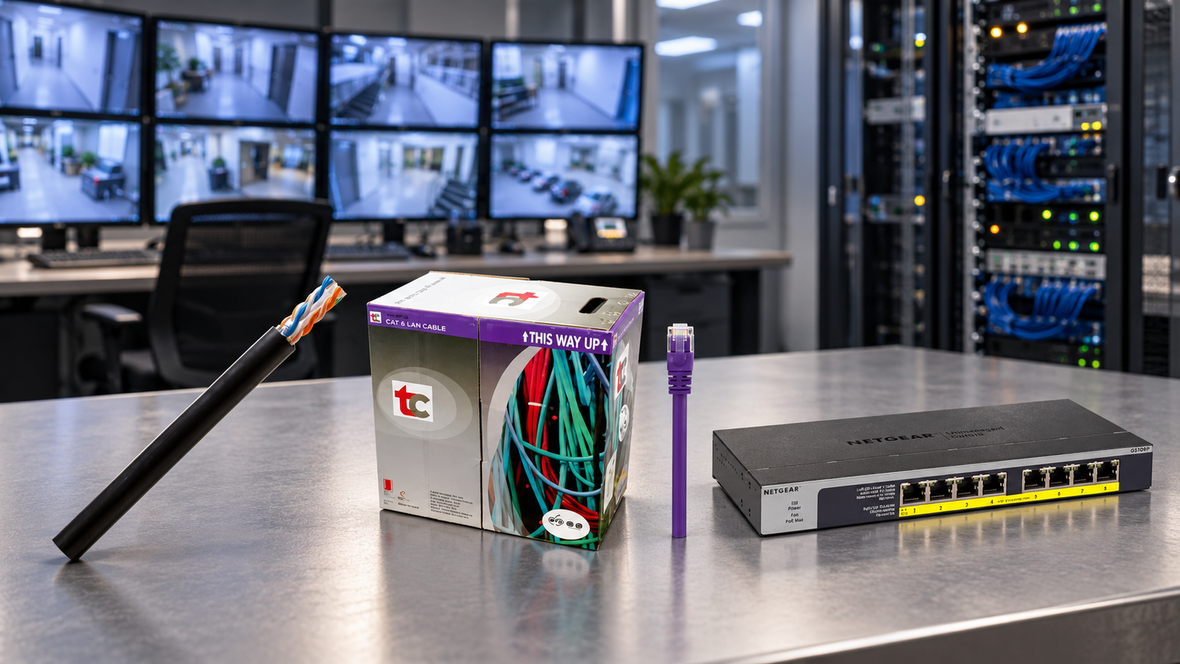

Use these cable options as a starting point for a project specification. The pictured items are equipment candidates, not a pre-approved complete design. Confirm model, accessories, interface support and suitability before ordering.

Related installer guidance: Cat6 vs Cat6A Ethernet cable comparison.

Primary references checked 24 October 2026: whitepapers.axis.com technical guidance; www.tycab.co.nz technical guidance.
