Cable Tester vs Network Tester vs PoE Tester: What Security Installers Actually Need

A cable tester, network tester and PoE tester answer different questions. A correct wiremap does not prove network configuration, an IP response does not prove video service, and PoE presence does not prove enough power reaches the camera. NZ security installers need a test method matched to the fault and the contract's acceptance requirements. Buy tools by their documented functions, rather than assuming every product called a network tester performs certification or loaded power testing.

Cable tester vs network tester vs PoE tester: quick comparison

Combined instruments can cover more than one role. Select by documented functions and the evidence the job requires. If the contract requires category certification, specify a suitable cabling certifier separately.

Separate the physical cable from the live service

The physical link includes conductors, terminations, patch leads and connection hardware. The live service adds switches, VLANs, addressing, authentication and applications. Power delivery adds another set of limits. Start by asking whether the fault follows the cable, port, endpoint or configuration. That keeps diagnosis focused and prevents unnecessary replacement of a working camera.

Write a short fault statement before testing. For example, camera C07 repeatedly restarts when its illuminator turns on, while camera C08 on the same switch remains stable. That observation points towards a power or connection investigation, but does not prove the cause. Record the conditions and test one variable at a time.

Use verification tools for connection faults

Basic cable verification commonly checks continuity and wiremap. Depending on the model, it may identify opens, shorts, reversed conductors, split pairs or approximate length. Check the exact feature list: an inexpensive LED sequencer may not detect every defect a more capable instrument can identify. Passing its test means only that the supported checks passed.

Use the correct remote and follow live-network restrictions. Some tools require the cable to be disconnected from all active equipment. Never assume a passive remote tolerates PoE. After retermination, test the complete intended path and label both ends. Retain the result against a cable identifier so another technician can distinguish a tested cable from an untested spare.

Understand qualification and certification

Fluke Networks distinguishes verification, qualification and certification. Verification checks connections; qualification assesses support for a particular network technology; certification measures against the selected cabling standard and test configuration. These are different evidence levels, not interchangeable names for a successful continuity test.

A security installer troubleshooting existing cabling may need qualification to determine whether the link supports the intended Ethernet service. A new structured-cabling contract may require certification and a manufacturer's warranty process. Establish that requirement before purchasing equipment or quoting the job. Hiring an appropriate instrument or specialist can be more practical than buying a tool that cannot produce the required report.

Certification also requires the correct limits, adapters and configuration. A result for a channel is not automatically a permanent-link result, and a Cat6 limit cannot establish Cat6A performance. Keep the instrument identity, calibration status where required, selected standard and full result file. A screenshot showing only PASS leaves important context missing.

Use network tests to investigate addressing and switching

A network tester may show link speed, switch-port identity, VLAN information, DHCP response, addressing or connectivity to a target. Functions differ widely, so list which are necessary for your projects. A ping reply establishes a limited connectivity result; it does not prove that the camera's video stream, recording schedule or event integration works.

Check the intended network design before changing an endpoint address. Duplicate addresses, wrong subnets or VLAN mismatches can resemble equipment failure. Compare the port configuration with the as-built schedule and use authorised credentials. Do not temporarily bridge a security network into an unrelated customer network simply to make discovery easier.

For intermittent faults, collect evidence over the period that matters. A single successful ping between outages can miss the problem. Correlate switch events, camera restarts and power changes, using consistent timestamps. Escalate configuration changes through the client's IT process where the network is managed by another party.

Specify what a PoE test must measure

PoE tools may indicate voltage, identify a supported standard, negotiate a class, report power information or apply a controlled load. Ask which functions the exact model performs and which PoE types it supports. Presence detection alone cannot establish sustained delivered power or the switch's remaining total budget.

Test at the endpoint when evaluating the installed channel. A reading beside the switch bypasses cable and connector losses. Confirm the test load and compare it with the device requirement. A camera's ordinary idle draw may be lower than its demand with heaters, illuminators, motors or accessories operating.

Keep switch budget and per-port capability separate. An adequate total budget does not guarantee one port can supply the required class, and a high-capacity port cannot compensate for an exhausted shared budget. Check allocation behaviour and power priorities on managed equipment. Record whether the test used the production switch, an injector or a handheld source.

Match common tasks to the right evidence

Consider a link that passes wiremap but negotiates at an unexpected speed. Investigate connector workmanship and channel capability, then check port and endpoint settings. Do not immediately certify the cable as good because all eight conductors appeared in sequence. Equally, do not condemn the cable until active equipment configuration has been considered.

Build a practical tool kit around recurring jobs

An installer doing small camera additions may need cable verification, a suitable electrical measuring instrument and access to switch diagnostics. A team delivering structured-cabling contracts may also need certification capability. A CCTV specialist may value a local video display and camera discovery features. The right combination follows the actual work and reporting obligations.

Review accessories and consumables with the tool: remote identifiers, supported plugs, test leads, batteries, firmware and report export. A tool that cannot safely connect to the installed interface is not useful merely because its headline functions look attractive. Train technicians on live-port restrictions and preserve a known-good lead for controlled comparison.

Make the report describe what was actually tested

Record site, cable ID, endpoints, tool model, test mode, date and observed conditions. Identify any limitations explicitly, such as no loaded PoE measurement or no category certification. Keep raw reports when available and link them to the project schedule. Avoid a generic network passed statement that another technician cannot reproduce.

Finish by testing the client's service through the installed equipment and restoring every temporary change. Confirm camera video, recording and relevant events, or the intended access-control transaction. A well-chosen tester helps isolate faults efficiently; a defensible handover explains both the successful checks and the checks that still need another instrument or specialist.

Equipment selection and technical references

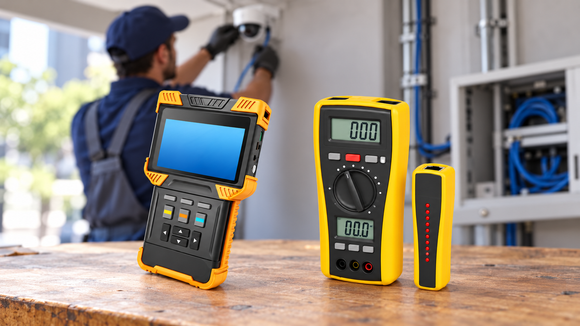

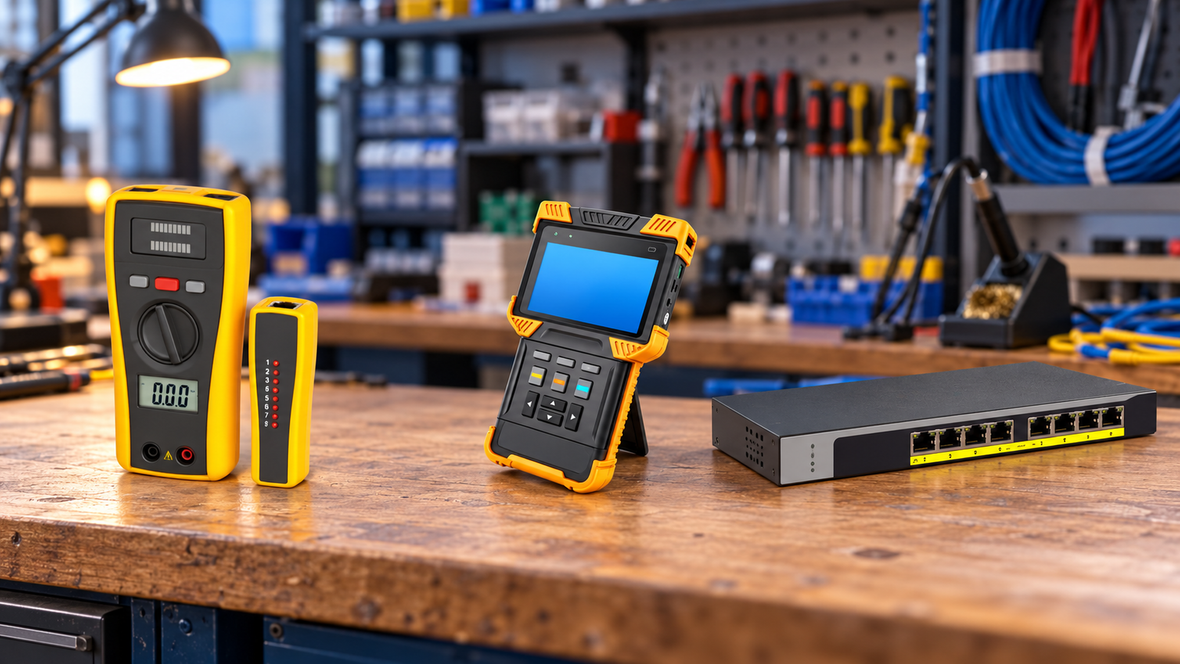

Use these security installation tools and test equipment as a starting point for a project specification. The pictured items are equipment candidates, not a pre-approved complete design. Confirm model, accessories, interface support and suitability before ordering.

Related installer guidance: PoE switch sizing for CCTV installations.

Primary references checked 24 October 2026: Fluke Networks: verification, qualification and certification; Fluke Networks: cable testing methods.
