CCTV Field Testers: What Installers Can Test Before Commissioning a Camera

A CCTV field tester can help an installer check a camera near its mounting point before the full recording system is commissioned. Depending on the exact tester, that may include video display, network discovery, cable checks or a supported power output. It cannot establish every aspect of recording, cybersecurity or evidence quality. Choose the tool against the cameras and tests on your project, then keep local installation checks separate from end-to-end acceptance.

Define the question before choosing the tester

Start with a test list: identify the cable, verify its termination, establish network connectivity, view the camera, adjust the scene and confirm supported power. Write down which tasks happen at the mounting point and which require the installed switch or recorder. A technician needs evidence of the fault layer, rather than a collection of green indicators with no recorded meaning.

Product names and suffixes matter. Dahua publishes specifications for PFM900-E, but an item listed as PFM900 must not automatically be credited with every PFM900-E function. Confirm the supplied model, firmware, supported video formats and accessories. This guide describes a selection process; it does not certify that one tool supports every current camera.

Verify analogue and IP compatibility separately

Analogue camera testing requires support for the exact signal format, resolution and frame rate. HDCVI, AHD, TVI and composite video are different modes, and a tester may have limits within each. Check the output selected on the camera as well as the input selected on the tester. A blank display can be a format mismatch rather than a failed camera.

For IP cameras, check decoding format, supported stream settings, authentication and network access method. Device discovery does not prove successful login or image decoding. A camera can respond on the network while its main stream exceeds the tester's capability. Test a supported stream without changing the final project settings unnecessarily, and record any temporary changes that must be restored.

Check the physical link before changing camera settings

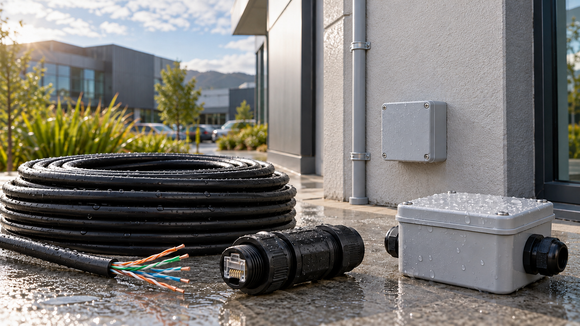

Inspect connectors, jacket support and accessible terminations first. Use the appropriate cable test to look for opens, shorts, miswires or other supported faults. Establish what the instrument actually measures. A basic continuity result cannot establish category certification, and a cable length estimate should not be treated as a surveyed route measurement.

When tracing a cable, follow the tester's restrictions for live networks and PoE. Do not attach a passive remote or toner to an energised port unless the instructions permit it. Label the verified cable and its switch port before moving on. This prevents a later camera address change being applied to the wrong physical endpoint.

Distinguish tester power from installed PoE

A tester with an approved power output may operate a camera locally. That is useful for identifying a failed cable or switch path, but it bypasses the production power source. If the camera works on the tester and fails on the installed channel, investigate cable resistance, connections, switch configuration and power budget rather than declaring the installation passed.

Check whether the tester sources PoE, receives PoE, measures live PoE or simply indicates its presence. Those are different functions. Confirm the supported standard, power limit and port arrangement before connection. Never connect two powered outputs together or use a passive voltage output on a device that expects a different supply arrangement.

Run the final camera power test through the installed switch and full cable. Where applicable, enable the expected illuminator, heater, motor or audio load under controlled conditions. A daylight bench image with a short lead is not evidence that the camera remains stable under the site's maximum operating demand.

Use local video to set the scene, then verify recorded detail

At the mounting point, a display helps check orientation, obvious obstructions and field of view. Confirm the target zone with a person or appropriate reference at the relevant distance, rather than judging empty paving. Account for gates, doors, vegetation and vehicles that may move into the scene. Check the physical mount before making repeated software adjustments.

A small tester screen can make an image look acceptable while hiding motion blur, focus problems or insufficient subject detail. Recheck the recorded stream on an appropriate display through the production recorder. Confirm the main stream, exposure, lighting and focus under representative conditions, including after dark where needed. Avoid promising identification performance from pixel count alone.

Use a fault-isolation sequence on site

For example, a camera may display correctly on the tester's local connection but remain absent from the recorder. Record the successful local test and move upstream to the installed VLAN, addressing and recorder settings. Repeatedly resetting a functioning camera can erase useful evidence and create extra commissioning work.

Protect configuration and credentials during testing

Use authorised accounts and avoid shared default credentials. Keep any saved camera credentials or test images on the handheld protected according to the company's procedure. Remove client-specific data before the tool moves to another customer where appropriate. A convenient discovery list can contain sensitive site addresses and device names.

Do not leave a temporary address, test user, open service or reduced stream setting active without approval. Record the original value, the test change and the restored value. Update the as-built schedule only after confirming the final settings. A field tester should help establish the configuration, not become an undocumented second source of it.

Complete the tests the handheld cannot replace

Verify recording schedules, event triggers, time synchronisation, user permissions and evidence export at the installed system. Test playback of a known event and confirm the exported file on the intended playback device. Check the agreed fault and restoration behaviour, including loss of camera communication and recording storage alerts where supported.

Save results against camera ID, location, cable ID, switch port, tester model and firmware. Identify the exact test performed and any functions not available. This produces a useful handover record: local installation checks support commissioning, while end-to-end tests prove the client's actual service.

Which test instrument do you need?

CCTV pre-commissioning checklist

• Record the camera ID, location, cable label and intended switch port.
• Confirm the exact tester model, firmware and supported camera format.
• Inspect mounting, connectors, cable support and weather seals.
• Run the appropriate cable test and record its result and limitations.
• Confirm authorised network access, addressing and camera login.
• Check orientation, focus and target detail at the required distance.
• Test the full installed PoE path under representative operating load.
• Restore temporary settings and remove unnecessary test credentials.
• Verify recording, playback, timestamps and export through the installed recorder.
• Document outstanding faults and any night-time checks still required before acceptance.

Equipment selection and technical references

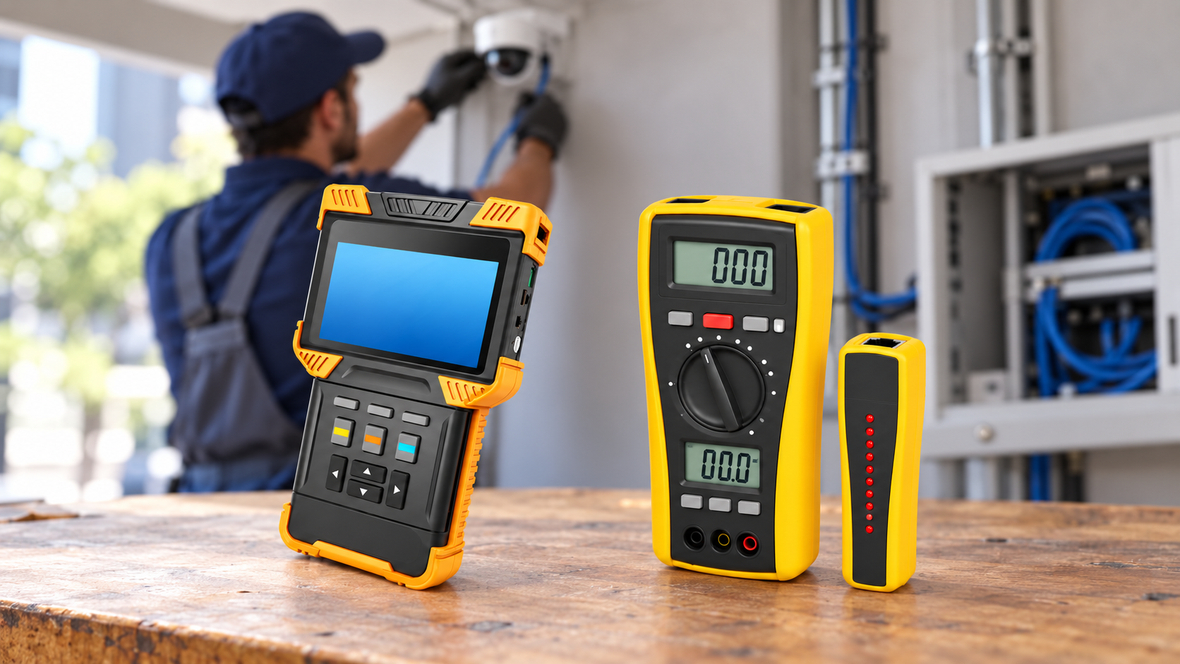

Use these CCTV field testers as a starting point for a project specification. The pictured items are equipment candidates, not a pre-approved complete design. Confirm model, accessories, interface support and suitability before ordering.

Related installer guidance: CCTV evidence export: formats, timestamps and playback.

Primary references checked 24 October 2026: Dahua PFM900-E specifications; Fluke Networks: verification, qualification and certification.
