GSM vs IP/SIP Intercom: Which Connection Is Better for Remote Gates?
Essential Security Supplies
Remote gate intercoms need a dependable way to connect visitors with the people authorised to admit them. For a rural driveway, farm entrance or commercial gate in New Zealand, the choice is often described as GSM versus IP/SIP. In practice, the correct choice depends on mobile coverage, available cabling, network resilience, video requirements and the way the gate controller is designed.
Modern cellular systems should be assessed for supported 4G operation rather than relying on legacy 2G or 3G voice services. IP/SIP systems use data networks, but can also operate over a properly configured cellular router. This guide explains the trade-offs installers should check before specifying equipment.
1. How cellular and IP/SIP gate intercoms communicate
Cellular or GSM-style intercoms
A cellular intercom uses a SIM and a mobile network to reach an authorised recipient. Depending on its design, it may place a conventional telephone call, communicate through an app, or support video over mobile data. The term GSM is still used commercially, but a product described as GSM is not automatically compatible with current New Zealand mobile networks. Check the exact modem bands, voice technology, carrier approval and any required subscription.
Cellular communication can reduce the need to install a data cable between the gate and the nearest building. It does not eliminate the need for a reliable local power supply, compatible gate-release wiring or a site-specific reception test. An external antenna may help on supported equipment, but cannot compensate for the complete absence of suitable network coverage.
IP and SIP intercoms
An IP intercom connects through an Ethernet or supported wireless data network. SIP is a signalling protocol used to establish communication sessions with compatible SIP phones, monitors or telephone systems. A manufacturer's cloud service may offer a separate route for smartphone answering, video and remote unlocking. SIP compatibility and cloud-app compatibility should be checked separately.
For example, the Akuvox E12S compact SIP video door phone is an example of the IP intercom category. The final installation still needs a compatible network, power arrangement and gate-controller interface.
2. GSM versus IP/SIP: practical comparison
| Consideration | Modern 4G cellular intercom | IP/SIP intercom |
|---|---|---|
| Connection | Compatible mobile network and SIM | Ethernet, suitable wireless bridge or cellular router |
| Long driveway | Can avoid a long data-cable run | Requires an engineered network path |
| Video | Selected models and applications | Selected models, compatible monitors or apps |
| Remote answering | Telephone calling or app, model-dependent | SIP, app or cloud, model-dependent |
| Recurring services | SIM and possibly platform fees | Internet, SIP or cloud fees where applicable |
| Main communications risk | Mobile coverage or carrier outage | Network, internet or hosted-service outage |
| Gate release | Compatible relay/controller interface | Compatible relay/controller interface |
Neither category is inherently more reliable at every site. A strong mobile signal at the farmhouse does not prove there is usable coverage at the gate. Likewise, a high-speed internet connection inside a commercial building does not guarantee that a wireless bridge will remain stable at an exposed entrance.
3. What matters at a remote New Zealand gate?
Measure cellular coverage at the installation point
Before selecting a cellular intercom, check coverage and actual signal quality at the proposed mounting height. Test the intended network with the equipment or a suitable survey device, and consider the final enclosure, antenna and nearby terrain. Confirm the intercom supports the carrier's required 4G voice or data service. Do not assume that replacing a SIM will make a legacy 3G-only intercom usable after a network shutdown. As at September 2026, One NZ has completed its 2G/3G shutdown and 2degrees has retired its 3G service. Check the current position of the intended carrier before specifying hardware.
Carrier references: One NZ's completed 2G/3G shutdown and 2degrees' 3G shutdown guidance. For the IP example, consult Akuvox's E12S technical datasheet to verify SIP, networking and relay features for the specified model.
Design the IP network rather than assuming Wi-Fi will reach
Where the gate is beyond a normal copper Ethernet run, investigate a suitable fibre connection, engineered point-to-point wireless bridge or cellular router. A wireless bridge needs line of sight, weather-appropriate mounting, suitable surge protection and dependable power at both ends. Fibre may be useful for long runs and electrical isolation, but its installation should be planned with the gate contractor and network installer.
An IP/SIP intercom may be particularly useful when the project also requires reception answering, multiple indoor stations, video, access-control integration or management of several entrances. The Akuvox R20K is another outdoor IP door-phone option to investigate against the project's exact requirements.
4. Can an IP intercom use a 4G connection?
Yes. A compatible 4G router can supply data connectivity to an IP intercom, giving installers a third design option when there is no practical wired internet connection at the entrance. This arrangement is not the same as using a traditional cellular voice intercom: the intercom still uses its IP functions, while the router supplies the cellular backhaul.
Check how the selected app, cloud platform or SIP service handles carrier-grade NAT, dynamic IP addressing and temporary loss of mobile data. Avoid assuming that an inbound connection to the router will be possible. Prefer the manufacturer's supported remote-access method, keep router firmware current and separate the intercom from unrelated network devices where appropriate.
Where local answering is essential during an internet outage, test the supported local SIP or monitor arrangement independently of the cloud service. Some cloud-dependent functions will stop when internet connectivity is lost, even if the local gate relay and access credentials remain operational.
5. Power, gate release and security requirements
The communications method is only one part of a safe installation. Document how the intercom is powered, whether its selected model supports PoE, what battery backup is required and how the gate controller responds during an outage. If the gate has its own battery system, do not assume it also powers the intercom, router or wireless bridge.
Use the manufacturer's specified relay interface and the gate operator's approved control input. Confirm voltage, current, dry-contact requirements and any isolation needed. Gate safety devices, emergency access arrangements and obstruction protection must not be bypassed by the intercom installation.
Protect remote unlocking with unique user credentials, restricted administrator access and supported firmware. Record who can issue or revoke mobile access, how lost phones are handled and what happens when a tenant, contractor or employee no longer needs access. For commercial sites, these operational requirements can be as important as the initial hardware selection.
6. Example product and system considerations
For an IP installation where a compact video door phone is appropriate, consider the Akuvox E12S and confirm its supported power, mounting and answering arrangements. Where an outdoor keypad and card-reading functions are required, review the R20K against the current manufacturer documentation and the intended gate controller. A larger entrance or a more demanding installation may require a different outdoor station, such as the Akuvox R25A single-button SIP video door phone, subject to the exact specification.
These genuine product photographs illustrate the IP/SIP side of the comparison. They should not be interpreted as evidence that the pictured products contain cellular modems. For a dedicated cellular system, select an actual supported 4G gate-intercom model after checking carrier compatibility and the required voice or app features.
7. DoorBird and Videx options for remote gates
Alongside Akuvox, Essential Security Supplies carries DoorBird IP video intercoms and a Videx 4G GSM intercom kit. These products illustrate why the choice should begin with the site's communications infrastructure rather than the brand alone.
Videx: a dedicated 4G GSM gate intercom example

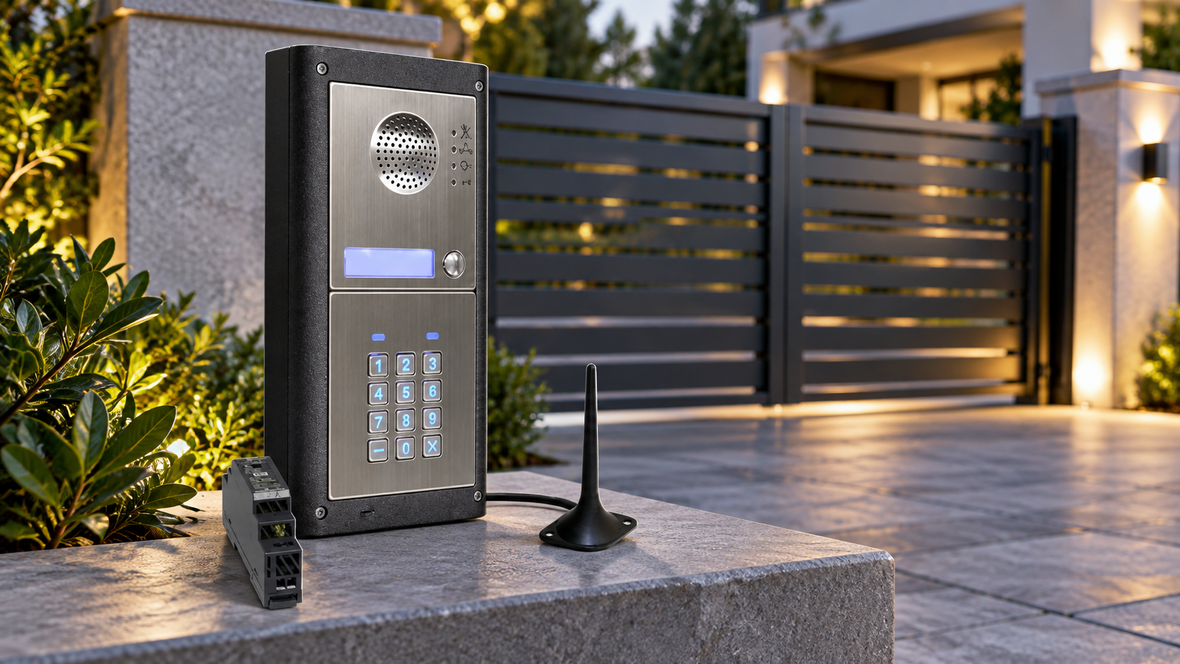

The Videx GSM4KCR-1S 4G intercom kit is listed by Essential Security Supplies as a single-button, surface-mounted GSM intercom kit with a backlit keypad and brushed stainless steel finish. It provides a relevant cellular product example when a gate has suitable 4G reception but no practical fixed data connection. Confirm the supplied kit's network compatibility, SIM requirements, call routing, keypad functions and power requirements before ordering.
DoorBird: networked IP video at the entrance
DoorBird's D1101KV surface-mounted IP video door station combines a single call button and keypad in an IP door-station format. It is an option to assess when the site can provide a suitable network connection and requires video at the gate. A DoorBird IP station should not be described as a GSM intercom merely because its internet connection might be supplied by a separate 4G router.
For an entrance needing a different mounting arrangement or an indoor answering station, review the broader DoorBird D2101KV and compatible accessories against the installation design. Compare supported features at model level; do not assume all DoorBird, Videx or Akuvox models offer identical calling, cloud, access-control or backup functions.
8. Installer checklist before specifying a remote gate intercom
- Measure 4G coverage at the exact gate location if considering cellular service.
- Confirm the mobile network, supported bands and voice or data requirements of the exact model.
- Measure the distance to the nearest network and power source.
- Identify whether audio-only, video, indoor monitors, smartphone answering or multiple users are required.
- Check the gate operator's approved trigger input and relay requirements.
- Document internet, carrier, router and power-failure behaviour.
- Confirm firmware support, remote-access security and any recurring service requirements.
- Test visitor calling, gate release and recovery after communications outages before handover.
9. Frequently asked questions
Is GSM or IP better for a rural driveway?
A supported 4G cellular intercom may reduce infrastructure work where coverage is strong and no network connection exists. An IP/SIP system may suit a site needing video, multiple answering stations or integration with other networked security systems. Survey the actual site before selecting either approach.
Does an IP intercom always need the internet?
No. Compatible local SIP devices can sometimes communicate over the same local network without internet access. Smartphone and hosted-platform functions generally depend on an operational internet connection and the relevant service.
Can a GSM intercom show video?
Some modern cellular models provide video over mobile data through supported applications. Traditional telephone-based GSM audio intercoms should not be assumed to provide video.
Can an IP intercom run through a 4G router?
Yes, provided the router, mobile service and intercom platform are compatible. Check carrier-grade NAT and the manufacturer's supported remote-access method.
Will an intercom still release the gate if the internet fails?
That depends on the model, its local credentials or relay logic, the controller and the power supply. Test the intended offline behaviour during commissioning rather than assuming it.
Get help specifying your gate intercom
Essential Security Supplies can assist trade customers with product selection and specification questions. Share the gate location, available power and cabling, measured cellular coverage, required answering devices and gate-operator details so the proposed equipment can be checked for suitability. Browse the Akuvox intercom kits and GSM intercom range, or contact Essential Security Supplies for trade specification assistance.
