Intercom door release wiring has three separate jobs: deciding who may enter, switching the release circuit and supplying the lock. A successful video call proves only the first part of the user experience. It does not prove that the lock receives the correct voltage, that the relay can switch its load or that the release arrangement remains secure when the outdoor station is tampered with.
For New Zealand installers, the practical starting point is a door schedule and the exact equipment manuals. This guide explains how to assess dry contacts, lock power and secure release interfaces, then commission the finished opening. For network and bus cabling, use our separate 2-wire, Cat6 and PoE intercom wiring guide.
For an occupied apartment building, use our staged apartment intercom retrofit guide to plan the survey, supported migration boundaries, pilot tests and rollback process.
Separate the control signal from lock power
A dry contact is a switch, not a power supply. COM is the common terminal; NO and NC describe the contact relationship in the relay's normal, unoperated state. These labels do not establish whether the finished door is locked, whether the system is healthy or what happens when every source of power fails. Software inversion and powered controllers can change the relationship between a command and the physical contact.
A powered output is different: it supplies voltage within a specified current limit. Never treat a relay's switching rating as an available power output. Before terminating anything, identify the output type, contact voltage and current ratings, supported load category, isolation requirements and the device's behaviour during restart. Akuvox's door-lock connection guidance is a useful starting point, but the installation drawing for the exact model remains essential.

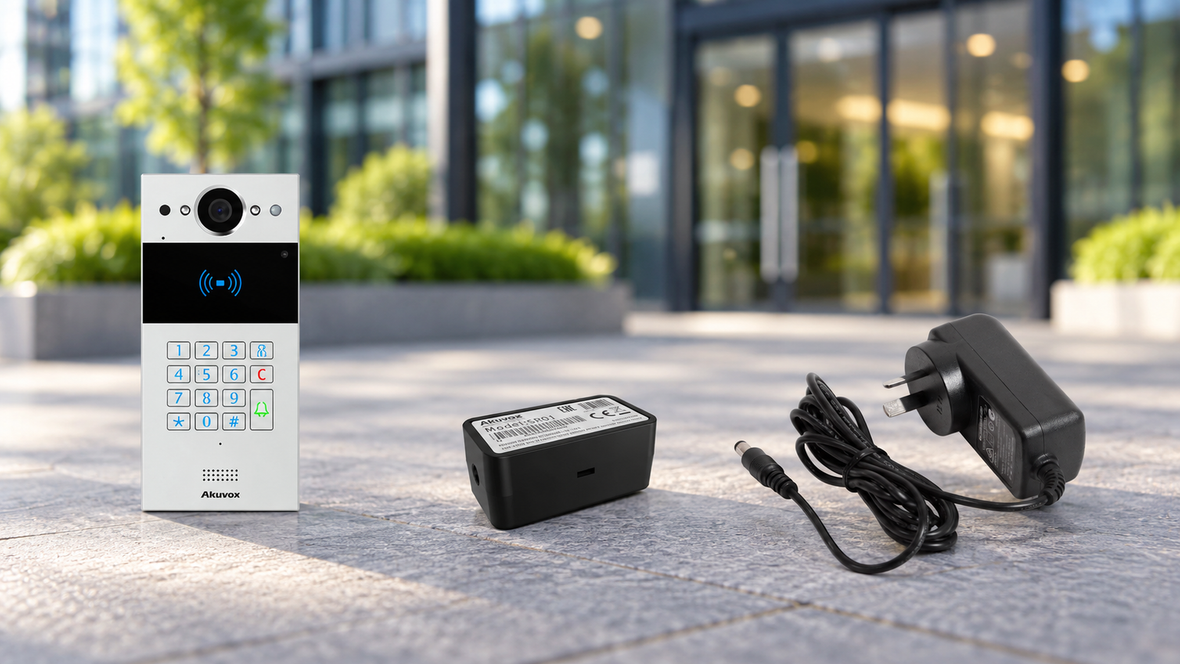

The Akuvox R20K door station is a catalogue option to assess for visitor calling and release control. Confirm its hardware revision and current installation documentation before choosing terminals or accessories. An R20 family name alone does not establish an identical terminal layout across revisions.
Choose the release arrangement for the actual opening
| Arrangement | What the designer must establish | Commissioning priority |
|---|---|---|
| Power-to-unlock lock | Required energisation, peak current and permitted duty cycle | Reliable release under realistic door pressure |
| Power-to-lock lock | Continuous load and required release paths | Correct behaviour when lock power is removed |
| Controller input | Required dry contact, pulse and input supervision | One command produces the intended door or gate action |
| Secure release interface | Supported station, firmware and control method | Normal release plus documented fault behaviour |
Fail safe generally describes a lock that unlocks when its operating power is removed; fail secure generally describes one that remains secured from the controlled side. Neither term alone describes free mechanical exit, emergency release, fire-door suitability or a compliant complete opening. Establish those requirements for the door, occupancy and approved building design before selecting the electrical arrangement.
For an automatic gate or door operator, the intercom may operate a dedicated command input rather than switch motor power. Use the operator's specified input and pulse settings. Do not connect a lock supply to an input expecting a volt-free contact, and do not bypass the operator's safety circuits to make release work.
Size the power supply and cable together
Record lock voltage, AC or DC operation, holding current, start current, duty cycle and allowed voltage range. Include interface modules, indicators and other loads on the same supply. Where backup is required, include the charger's capacity and the actual battery operating conditions. The supply's headline current rating is only one part of that assessment.

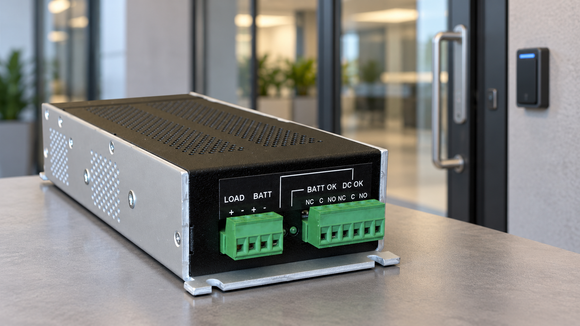

The ITPSA12-2AMP 12 V DC plug-pack supply illustrates a separate supply option. Its catalogue rating is not a recommendation for every lock circuit: confirm the project's voltage, connector, protection, backup and enclosure requirements. Explore the wider access control power supply range where a supervised or battery-backed arrangement is needed.
As an illustrative calculation, a 12 V lock drawing 0.8 A through a cable loop with 1.5 ohms resistance loses 1.2 V: voltage drop equals current multiplied by loop resistance. If the source measures 12.0 V under load, the lock receives approximately 10.8 V before other connection losses. This is a calculation example, not an acceptable-voltage specification. Compare the measured result with the exact lock's permitted range and check its peak load separately.
Measure at both the supply and lock during release, not only with the lock disconnected. Account for both conductors in the loop. Do not compensate for excessive cable loss by raising the supply beyond any connected device's permitted voltage.
Keep the switching decision inside the secure area
If lock switching and accessible conductors sit behind an outdoor station, the security design should assess the consequences of physical tampering. Moving the release interface indoors can reduce that exposure, provided the control method and installation genuinely protect the release path. An ordinary relay moved indoors is not automatically equivalent to a manufacturer-supported security interface.
The Akuvox SR01 security I/O module is one such accessory to investigate. Akuvox's SR01 configuration guide, updated 17 September 2026, lists supported hardware and firmware combinations. For example, its connection-support table lists R20 V3 from 220.30.4.5 and R20 V5 from 320.30.4.2. Those entries must be checked against the actual installed unit; they do not establish that an unidentified R20K is compatible.
The same guide distinguishes connection methods and warns against the exceptional E12 connection on security grounds. Do not generalise the SR01 into a universal secure accessory for every Akuvox station. Confirm the approved method, power arrangement, pairing, firmware and release permissions before installation. Protect the enclosure and cable route as part of the same design.
Check protection, exit and failure behaviour
Inductive loads can generate a voltage transient when switched off. Use the suppression specified by the lock and interface manufacturers. A diode, rectifier or other suppressor is not a universal interchangeable part: suitability depends on AC or DC operation, polarity and the equipment design. The 2N IP Uni electrical installation instructions demonstrate why switched outputs and inductive-load protection need model-specific treatment.
Review egress independently of normal visitor release. Identify the required mechanical exit, request-to-exit equipment, emergency release and any fire-system interface with the responsible project specialists. The intercom application must not become an assumed substitute for the opening's required exit provisions. Have prescribed electrical work undertaken by appropriately authorised people.
Write down expected responses to loss of mains, loss of lock supply, loss of PoE, network failure, controller restart and a disconnected release interface. A cloud app becoming unavailable is different from lock power disappearing. Test each relevant condition using an agreed safe commissioning procedure.
Typical intercom door-release layout
CONTROL PATH
Visitor call and authorised release command
Manufacturer-supported control connection
Receives the supported command and operates its relay contacts
LOCK-POWER PATH
Correct voltage, current capacity and protection
Contact selection follows the lock operating mode and approved design
Verify loaded voltage, release and relocking at the door
This layout deliberately keeps the station's control connection separate from the lock supply. It does not establish terminal numbers, a shared negative, a universal NO/NC choice or a compliant exit arrangement. Those details depend on the selected station, interface, lock and approved opening design.
Three quick fault checks
| Symptom | First check | What to record |
|---|---|---|
| Relay clicks but the lock stays secured | Check the switched circuit and voltage at the lock during the release command; distinguish loss of power from mechanical binding. | Supply and lock voltage under load, contact state and latch behaviour. |
| Intercom restarts when release operates | Check for supply sag and verify the manufacturers' specified load suppression. | Minimum voltage during switching and the installed suppression arrangement. |
| App release works but local exit does not | Check the separate local-exit circuit against the approved drawing. | Input operation, release response and emergency-release test results. |
Commission the circuit with a repeatable test sheet
- Record station, lock, supply and interface model numbers, hardware revisions and firmware.
- Attach the approved circuit drawing, cable route, conductor size and protection details.
- Verify supply polarity and output type before connecting the load.
- Measure supply and lock voltage during holding and release; document peak-current evidence.
- Test a normal call, authorised release, release duration and relocking.
- Check the latch engages with the closer operating normally and representative door pressure.
- Test approved local exit and emergency release arrangements with the responsible parties.
- Check the agreed power, network and restart cases and record actual results.
- Confirm access permissions, change default credentials and hand over the as-built record.
If the relay clicks but the lock does not release, first distinguish a missing electrical output from mechanical binding. Check the loaded voltage, continuity and contact operation using appropriate isolation procedures. If the station restarts during release, investigate shared-supply voltage sag and the approved suppression arrangement. Avoid repeated substitutions that conceal the underlying fault.
Frequently asked questions
Does PoE at the intercom mean the lock needs no separate supply?
No. Establish whether the exact station has an approved powered lock output or dry contacts. A PoE input alone does not specify an available lock supply.
Should an electric strike use NO or NC?
Choose from the exact lock's operating mode and the complete approved circuit. Do not choose solely from the words electric strike: verify its power-loss behaviour and required exit arrangement.
Can any relay module replace a security relay?
No. Contact switching and a supported secure release interface perform different roles. Confirm the manufacturer's supported control method and physical installation requirements.
Why does the lock work on a short test lead but fail at the door?
Possible causes include cable voltage drop, poor joints or mechanical loading. Measure voltage at the lock while it operates and compare the result with its documentation.
Get the door-release specification checked
Send Essential Security Supplies the door-station revision, firmware, lock model, cable length, supply details and required exit and outage behaviour. Request technical specification help or a trade quotation before ordering the interface and power equipment.
