Outdoor perimeter detection should tell a commercial site that someone has entered a protected area early enough for a useful response. Choosing between PIR detectors, active infrared beams and radar starts with the shape of that area: a building frontage, a straight boundary or an open yard. There is no universal winner. The right choice depends on the movement you need to detect, the obstructions you cannot remove and what happens after an alarm.
For New Zealand installers, the practical question is not simply which technology has the longest range. It is which design can be commissioned, maintained and explained to the person responding at night. This guide compares the three approaches and provides a specification and acceptance-test framework for commercial premises.
Start with the alarm boundary and response
Mark the protected boundary on a scaled site plan before selecting detectors. Separate public footpaths, staff entrances, delivery routes and after-hours restricted areas. Record fences, gates, trees, parked vehicles, signs, drainage changes and places where stock may be stored. A clear yard during installation can become an obstructed yard once normal operations resume.
Agree the event the system must report. A person walking beside a warehouse, someone crossing a fence line and a vehicle moving through a restricted yard are different detection tasks. Identify who receives the event, how they verify it and what action they can take. Detection alone neither identifies the person nor guarantees that a response will arrive.
Use the existing Optex detector range guide for the broader product families. This article focuses on the separate site-design decision between a detection area, a beam line and radar tracking.
PIR: protect approaches and defined building edges
Passive infrared detection responds to changes in infrared energy across its sensing zones. An outdoor PIR must be designed for outdoor use; an indoor detector under an eave is not an equivalent specification. Coverage drawings, mounting instructions and environmental suitability matter more than the word outdoor on a quotation.
The Optex BXS-ST boundary detector is a curtain-style option. Optex describes the BXS-ST as a hardwired detector with coverage up to 12 metres on each side and independent side settings. That arrangement suits a defined building edge rather than replacing a wide-area yard sensor. Confirm the selected housing, mounting position and actual coverage against the exact installation instructions. Manufacturer BXS-ST information.
For an approach area, the Optex VXI-ST outdoor PIR provides a different pattern. Its manufacturer describes up to 12 metres of 90-degree coverage using two PIR layers, with both layers involved in an alarm decision. The published mounting guidance is around 1.2 metres, but the exact manual and site survey control the installation. This is not a promise that every target will be detected anywhere inside a simple 12-metre circle. Manufacturer VXI-ST information.
Commission the edges as carefully as the centre. Test movement across the sensing pattern and realistic routes beside doors, down steps and around corners. Exclude public movement and avoid making sensitivity reduction the first answer to an unsuitable mounting location. Animal tolerance reduces particular nuisance scenarios; it does not make an installation immune to animals or moving vegetation.
Active beams: detect crossing of a clear line
An active infrared beam system uses a transmitter and receiver. Its detection task is interruption of the beam arrangement, making it useful where a clear line can define the boundary. The geometry is different from a PIR field: movement beside the line may be irrelevant until the person crosses it.

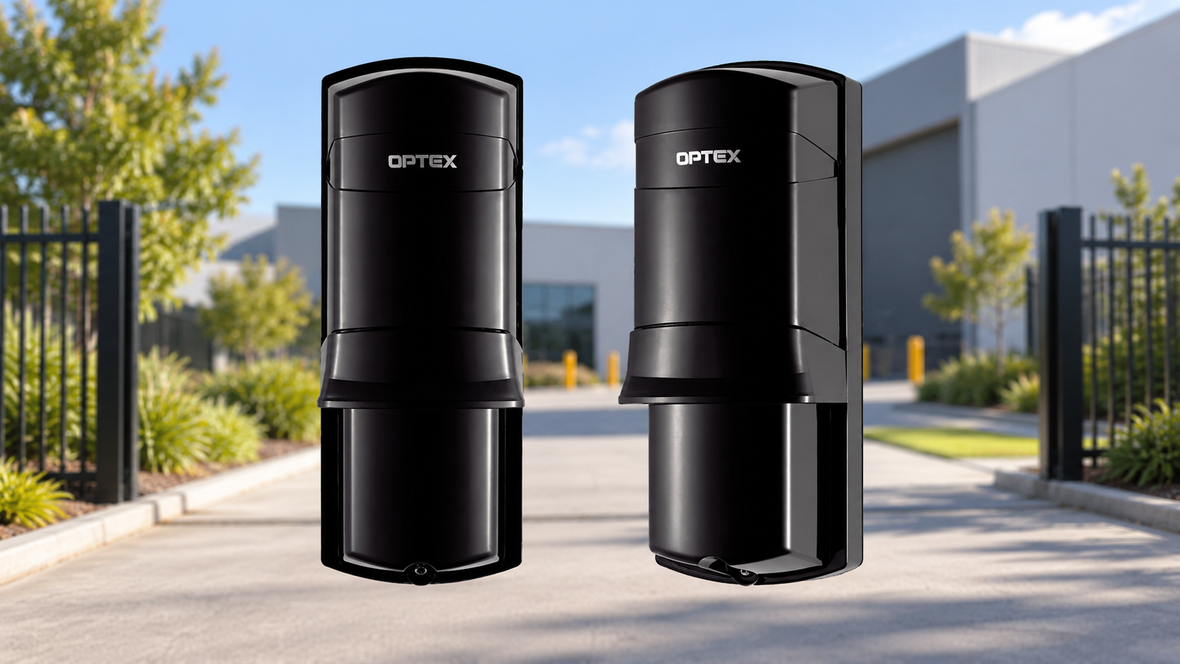

The Optex SL-350QDP beam set is listed as a 100-metre outdoor active infrared option. Optex specifies quad-beam interruption and channel selection for this family. Treat that distance as a product rating, not permission to ignore alignment, terrain or the manual for the supplied variant. Manufacturer SL-350QDP information.
Survey the full path at the intended beam heights. Sloping ground, a gate leaf, parked trailers and vegetation can undermine an otherwise suitable line. Mounting supports must remain stable. If multiple beam sets share a boundary, follow the manufacturer arrangement for channels and stacking rather than assuming adjacent sets cannot interfere.
Check both the alarm and fault behaviours. Ask what the receiving system reports when power is lost, a cable is damaged or the optical path remains blocked. A persistent blockage should not disappear into a permanently bypassed zone. Include lens cleaning, alignment checks and vegetation clearance in the maintenance scope.
Radar: monitor movement across an open area
Security radar uses radio waves to detect movement and, in supported products, provide position, direction or speed information. It can suit an open commercial yard where the requirement extends beyond crossing a single straight line. Exact classification, tracking and integration capabilities depend on the chosen model and software.
Radar is not a way to see reliably through every obstruction. Axis explains that solid objects can create radar shadows, and that reflecting objects near its D2110-VE can affect performance. Its documentation also covers map calibration, detection zones, exclusion zones and nuisance-alarm settings. These are model-specific design considerations, not a stocked-product recommendation or a blanket statement about every radar. Axis D2110-VE technical documentation.
Draw expected blind areas behind buildings, containers and vehicles. Ask whether the site layout changes daily and whether another sensor or camera is needed to cover those changes. Where radar triggers CCTV recording or camera movement, verify the exact event interface, supported software versions and behaviour when the receiving system is unavailable.
No detector technology removes nuisance-alarm risk. The Axis perimeter protection white paper identifies environmental and installation constraints across detection technologies. Require a site demonstration rather than accepting an all-weather or zero-false-alarm promise.
Compare the options against the actual site
| Site requirement | First option to assess | Decisive check |
|---|---|---|
| Movement along a building edge | Curtain PIR | Coverage at corners, doors and each side of the detector |
| Movement through an approach area | Outdoor area PIR | Mounting height, masking and crossing routes |
| Crossing a straight boundary | Active infrared beams | Clear line, stable supports and terrain |
| Movement across a large open yard | Security radar | Obstructions, tracking requirements and event integration |
| Boundary plus visual verification | Layered detection and CCTV | Usable images and a defined response workflow |
This table is a starting point for survey, not a specification by itself. A mixed design may be more appropriate than forcing one technology across every part of the premises. Keep alarm zones meaningful so the responder knows which frontage, gate or yard area needs attention.
Installed cost, weather and maintenance
Compare the total installed and maintained system, rather than detector prices alone. The following are budgeting considerations, not quotations or a fixed price ranking. Cable routes, trenching, mounting supports, power supplies, network equipment, CCTV integration and commissioning can change the result substantially.
| Technology | Installation cost drivers | Weather and site checks | Ongoing maintenance |
|---|---|---|---|
| Outdoor PIR | A defined approach may need relatively few devices, but several separate frontages require additional detectors, cabling and inputs. | Check the exact model's operating temperature and environmental limits. Assess direct sun, heated surfaces, moving vegetation and animal routes during the survey. | Keep sensing windows clean, maintain masking and repeat walk tests after vegetation, access routes or stored goods change. |
| Active infrared beams | Allow for the transmitter and receiver, power at both ends, stable posts, cable routes and alignment time. Trenching can outweigh the equipment cost. | Check the manufacturer's guidance for fog, rain, frost and direct sunlight. Maintain the optical path at every beam height and assess movement of posts in wind. | Clean optical surfaces, trim vegetation and check alignment, fixings and persistent-obstruction reporting. |
| Security radar | Budget for the selected radar, suitable mounting, network and power infrastructure, any required software licences, map calibration and event integration. | Follow the selected model's environmental limits. Survey reflections and shadows from buildings, containers and vehicles; do not assume weather immunity. | Review detection and exclusion zones, network health and integration. Repeat acceptance tests when the yard layout or software changes. |
For a New Zealand coastal site, also check corrosion exposure and the suitability of housings, brackets and fixings. Agree a maintenance schedule based on the product manuals and site conditions. Compare quotations against the same detection routes, fault reporting and verification requirements so a lower price does not conceal an uncovered area.
Worked example: a warehouse with a changing yard
Consider a warehouse with a narrow staff passage beside the building, a straight rear fence and an open loading yard. A curtain PIR could be assessed for the staff passage, beams for the clear rear boundary and radar for movement across the open yard. These are survey candidates, not a completed design.
Now add a container near the fence and delivery vehicles left overnight. The container may interrupt a beam path and create a radar shadow. The solution could involve relocating equipment, changing storage rules or adding coverage. Turning down sensitivity would not repair the missing detection geometry.
During commissioning, test each agreed route with the normal yard layout in place. Record the event location, receiving-system message, associated camera view and response action. Repeat the tests after deliberate power and communication interruptions using an agreed maintenance procedure. Document any uncovered route and obtain a design decision before handover.
Specification and handover checklist
- Define the target, protected area, operating schedule and authorised movement.
- Record exact detector models, manuals, mounting details and environmental limitations.
- Verify supply voltage, current requirements, voltage drop and alarm-panel input compatibility.
- Document alarm, tamper, fault and communication-loss indications as supported by the selected equipment.
- Prove detection on agreed routes and confirm usable CCTV verification where required.
- Assign responsibility for vegetation, stored stock, cleaning, alignment and future site changes.
- Leave a zone plan, acceptance results and a clear process for reporting nuisance events.
Frequently asked questions
Is radar always better than outdoor PIR?
No. Radar may suit open-area tracking, while an outdoor PIR may suit a smaller approach or building edge. Compare coverage geometry, obstructions and integration before choosing.
Can active beams protect an uneven boundary?
They require a suitable optical path. Changes in ground level and possible routes beneath or around the beam arrangement must be surveyed. A long-range rating does not resolve those gaps.
Do outdoor detectors replace CCTV?
No. Detection provides an event; a suitable camera view can help a responder understand it. Camera placement, lighting and the event workflow need separate verification.
Should a commercial site combine technologies?
Often it is worth assessing a layered design. Use each technology for a defined task and verify the interfaces and response process. Adding devices without a coverage plan does not automatically improve protection.
Get help specifying perimeter detection
Browse the Optex outdoor detector range and contact Essential Security Supplies for specification assistance or a trade quotation. Supply a site plan, boundary lengths, mounting options, normal vehicle positions and the alarm or CCTV platform so the discussion starts with the real detection task.
