SIP Emergency Call Points: System Design, Escalation and Commissioning

A SIP emergency call point is part of a response service. Its enclosure and call button matter, but the design succeeds only when a user can reach an appropriate person, explain the problem and receive a useful response. For NZ installers, specification therefore starts with the operational workflow, then covers siting, call routing, accessibility, backup and testing.

Define the response before choosing the enclosure

Decide who answers during business hours, overnight and during public holidays. Name the backup answering position and the person responsible for keeping the call route current. Establish whether the station is for general assistance, security incidents or another clearly defined purpose. A prominent emergency label must match the actual service. Document escalation separately from dispatch so that answering a call is not confused with sending help.

Choose a location that supports a useful conversation

Map approach routes, likely incident locations and obstructions before placing stations. An installation behind parked vehicles or beside loud machinery may be difficult to find or hear. Check visibility from the approach, lighting after dark and the ability to reach the button from the intended access position. Review these choices with the client's accessibility adviser. A tall tower improves visibility but does not, by itself, prove accessible operation.

Distinguish the enclosure from the configured SIP station

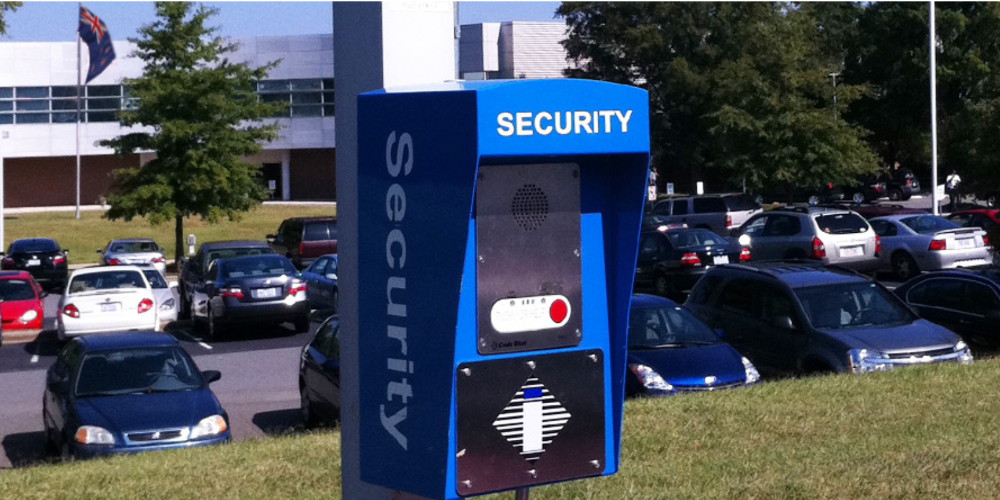

Essential Security Supplies lists FERN360 pillar, bollard and wall-mount options. Treat these as possible mounting arrangements, then confirm the supplied call module, button configuration and accessories in the quotation. Do not infer a complete communications specification from the enclosure name. Where an Akuvox E21 station is selected, use its exact variant and firmware documentation. Check power, audio, video and feedback requirements against that supplied assembly.

Specify escalation and simultaneous calls

Write a call flow with explicit outcomes for answer, busy, no answer and registration failure. Decide whether calls ring sequentially or together and how the operator handles a second call. Ask what happens if the first answering phone forwards elsewhere or uses voicemail. A call that reaches an unattended mailbox may satisfy a basic telephone connection test while failing the intended assistance service. Test that case deliberately.

Control commissioning without disturbing emergency services

Use approved test destinations and inform all answering positions before testing. For each station, verify its physical label, displayed identity, intelligibility and escalation sequence. Simulate the primary destination being unavailable and confirm the planned alternative. Record whether a caller can cancel and whether the answering operator can call back. Never assume that dialling a public emergency number for an unsolicited equipment test is acceptable.

Choose a serviceable configuration

Create a schedule of stations, module models, power requirements and call routes. Include the required enclosure finish, mounting method and environmental protection, together with the associated network and answering equipment. Set an inspection process for button damage, water ingress and audio performance. The final acceptance record should include real test calls, fault notifications and operator training, rather than only photographs of installed pillars.

Apply the design to the actual project

Treat a commissioning call as a short operational exercise. The caller should use the installed button without instructions from the installer, while the answering operator uses the displayed location to identify the station. Check that both parties understand each other with normal site noise present. Then ask the operator to describe the response process and the alternative route if the first responder is unavailable. Record the complete outcome rather than writing only call connected.

Include a change scenario in the handover. If the client moves the answering position, changes a SIP provider or alters working hours, identify which settings and test calls must be repeated. Keep a controlled list of destinations and escalation owners so that a temporary diversion does not become permanent unnoticed. A monthly or other agreed operational test should exercise the people and routing as well as the physical button. Set the interval with the client according to the service's purpose and risk.

Prove fault reporting and continuity

Size backup power for the whole call path, including network switches, the SIP server and the answering equipment where applicable. A powered station cannot reach an unpowered endpoint. Establish the agreed duration and test it with a representative load. Check which parts of the service depend on internet access and which operate locally. Record the intended behaviour during network failure, registration failure and loss of a primary answering position.

A busy tone, no answer and a failed connection need different handling. Define the sequence, timeout and maximum escalation behaviour, then test each case. Confirm that a user receives understandable feedback while the call is being placed and knows whether anyone has answered. Do not promise automatic connection to public emergency services unless that exact routing and operational arrangement has been approved and demonstrated. Arrange a controlled test procedure rather than placing an unsolicited test call to an emergency number.

Commissioning acceptance checklist

Agree the expected result before testing. Use the installed configuration and retain evidence of each outcome, including a failure that must be corrected. The following checks supplement the exact manufacturer procedures and the approved project design.

Repeat affected checks after a material equipment, software or site change. Keep the test record with the as-built schedule so the next maintainer can understand which configuration passed and which assumptions still need review.

Equipment candidates and specification checks

These are relevant active catalogue candidates for a project review, rather than a universal recommendation or a promise of immediate stock. Use the full product page and current manufacturer information to confirm the supplied variant and its role in your design.

• FPECP-QR - FERN360 Emergency Call Point Pillar & SIP Station. Confirm the exact supplied configuration, relevant interfaces and installation requirements before including it in the equipment schedule.
• FPECP-BCC - FERN360 Emergency Call Point Pillar & SIP Station. Confirm the exact supplied configuration, relevant interfaces and installation requirements before including it in the equipment schedule.
• FPECP-WM - FERN360 Wall Mount Emergency Call Point & SIP Station. Confirm the exact supplied configuration, relevant interfaces and installation requirements before including it in the equipment schedule.

Review the relevant Essential Security Supplies equipment range alongside the intended workflow. For further context, read our related installer guide.

Frequently asked questions

Does SIP support guarantee compatibility?

No. Test the chosen station, server and answering endpoint together, including audio, video where required, routing and failure behaviour.

Does an emergency call point automatically contact 111?

No. Call destinations depend on the approved configuration and operational arrangement. Specify and test the intended answering service.

Is backup power needed only at the station?

No. Every required stage of the call path needs the agreed continuity arrangement, including networking and answering equipment.

Primary references and technical scope

Use the primary manufacturer or technical reference for the claims it covers. General design guidance does not replace the selected product's installation manual. Confirm current firmware, model variants and the approved project requirements before ordering or commissioning.

Get specification help from Essential Security Supplies

Send your site layout, equipment schedule, intended workflow and any existing model details to Essential Security Supplies for specification help and a project quotation. Identify the functions that must be demonstrated and the interfaces owned by other contractors. Our enquiry route supports a documented equipment review without publishing prices or assuming unverified compatibility.
