Dahua Surveillance Systems: How to Choose the Right Camera for Your Site NZ

Dahua Technology is one of the world's leading video surveillance manufacturers, supplying IP cameras, PTZ systems, thermal imaging, and AI-powered analytics platforms to commercial, industrial, and critical infrastructure sites globally. This guide explains the key Dahua technology platforms and camera types available in New Zealand, helping security installers and procurement teams specify the right solution for each application.

All Dahua products referenced in this guide are available for professional supply through Essential Security Supplies NZ. Contact our team for project pricing and availability.

---

Understanding Dahua's AI Platform Hierarchy

Dahua organises its camera range around distinct AI and imaging platforms. Selecting the right platform is the first step in any Dahua specification, as it determines the level of intelligence, analytics capability, and integration options available on site.

---

WizSense - AI Perimeter Protection for Commercial Sites

WizSense is Dahua's entry-level AI platform, designed to reduce false alarms and improve perimeter detection accuracy on commercial and light industrial sites. Cameras in this range use deep-learning algorithms to classify detected targets as human or vehicle, filtering out false triggers caused by animals, foliage movement, and lighting changes.

WizSense cameras support SMD Plus (Smart Motion Detection), tripwire, and intrusion detection with target classification. They are well suited to retail premises, warehouses, car parks, and residential complexes where reliable perimeter alerts are needed without the cost of a full AI analytics platform.

---

WizMind - Advanced AI Analytics for High-Security Environments

WizMind sits above WizSense in the Dahua platform hierarchy and adds a broader suite of AI functions including face recognition, people counting, multi-target tracking, and vehicle attribute detection. WizMind cameras are suited to environments where detailed forensic video and behavioural analytics are required - such as data centres, financial institutions, transport hubs, and government facilities.

WizMind cameras typically feature higher-grade image sensors (1/1.8" CMOS and above), motorised varifocal lenses, and support for five simultaneous video streams. They integrate with Dahua's DSS and Smart PSS management platforms for centralised analytics and event management.

---

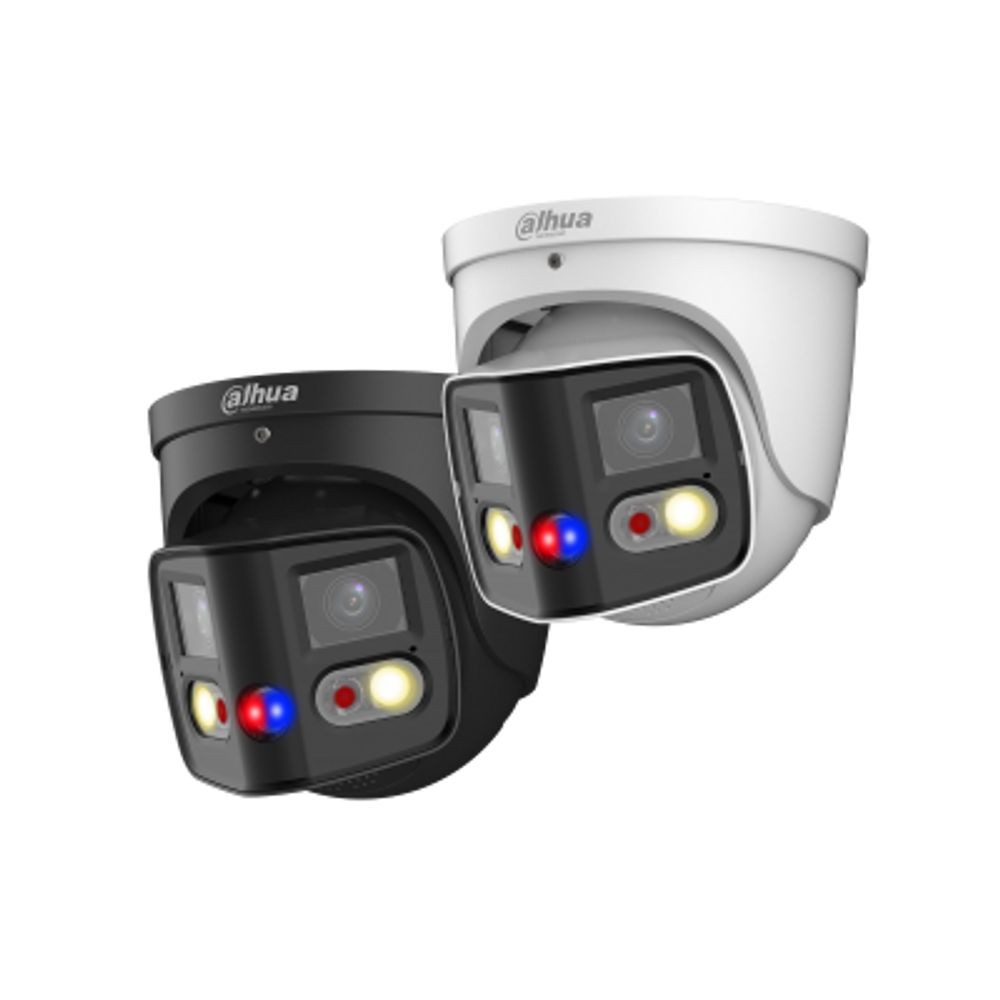

TiOC - Active Deterrence with Full-Colour Night Vision

TiOC (Three-in-One Camera) combines three functions in a single unit: full-colour night vision, AI perimeter protection, and active deterrence. When a target is detected, TiOC cameras can trigger a built-in white light and audio alarm to warn intruders before an incident escalates - without requiring a separate siren or lighting circuit.

TiOC is particularly effective for outdoor perimeter applications, logistics yards, retail car parks, and construction sites where a visible and audible deterrent is part of the security strategy. The active deterrence function can be configured to trigger on human or vehicle detection only, minimising nuisance activations.

---

Dahua Camera Types and When to Use Each

Beyond the AI platform, camera form factor and optical configuration determine how well a camera performs in a given location. Dahua offers four primary camera types relevant to most commercial and industrial installations in New Zealand.

---

Fixed Turret and Eyeball Cameras

Fixed turret and eyeball cameras are the most common form factor for indoor and outdoor general surveillance. They offer a compact, low-profile housing with a fixed focal length lens, making them straightforward to install and cost-effective to deploy at scale. Dahua's WizSense turret range supports H.265+ compression, built-in microphones, IR illumination to 30 m (98 ft), and PoE power - making them a practical choice for office buildings, retail stores, and multi-tenancy sites.

Fixed cameras are best specified where the field of view is well defined and the camera position can be optimised during installation. For locations where coverage requirements may change, or where a single camera must cover a large area, a varifocal or PTZ camera is a better choice.

---

PTZ (Pan-Tilt-Zoom) Cameras

PTZ cameras provide motorised pan, tilt, and optical zoom control, allowing a single camera to cover areas that would otherwise require multiple fixed units. Dahua's PTZ range spans from compact 4MP units with 25x optical zoom to high-resolution 8MP (4K) models with 32x zoom and IR illumination to 150 m (492 ft).

Key PTZ features to consider when specifying include optical zoom ratio, DORI (Detect, Observe, Recognise, Identify) distances, auto-tracking capability, preset and tour support, and protection rating. Dahua PTZ cameras in the WizSense range support deep-learning auto-tracking, which locks onto and follows a detected human or vehicle target automatically - reducing the need for operator intervention in monitored environments.

PTZ cameras are well suited to large open areas such as ports, industrial yards, sports facilities, and transport interchanges where wide-area coverage and the ability to zoom in on incidents are both required.

---

Bullet Cameras

Bullet cameras offer a longer, cylindrical housing that provides more space for larger image sensors, motorised varifocal lenses, and extended IR illumination modules. Dahua's WizMind bullet range supports motorised zoom, face recognition, and people counting in a weatherproof housing rated to IP67 and IK10. Bullet cameras are commonly used for entrance monitoring, car park coverage, and perimeter lines where a directional, long-range camera is required.

---

Thermal Cameras

Thermal cameras detect heat signatures rather than reflected light, making them effective in complete darkness, smoke, fog, dust, and other conditions where standard IR cameras cannot perform. Dahua's thermal range includes compact dual-sensor models that combine a thermal imaging sensor with a visible-light sensor in a single housing, providing both detection capability and colour video for verification.

Thermal cameras are suited to critical infrastructure perimeters, utility sites, ports, and industrial facilities where detection in adverse conditions is a core requirement. Note that thermal imaging products may be subject to export control regulations - installers should confirm applicable requirements before procurement. The New Zealand Security Association (NZSA) provides guidance on compliance and best practice for security equipment in New Zealand.

---

Dahua Surveillance Kits

For straightforward installations, Dahua offers pre-configured surveillance kits pairing a recorder with a matched set of cameras. HD-CVI kits bundle an analogue HD recorder with vandal dome cameras, providing a complete system without requiring IP network infrastructure. This makes them a practical option for smaller sites or retrofit installations where existing coaxial cabling is already in place.

IP kitsets pair a Dahua NVR with matched IP cameras and are suited to new installations where network infrastructure is available. Kitsets simplify procurement and ensure camera-recorder compatibility out of the box.

---

Product Specifications: Key Parameters to Compare

Specification	What It Means	Why It Matters
Image Sensor Size	Physical size of the CMOS sensor (e.g. 1/1.8", 1/2.7")	Larger sensors capture more light - better low-light performance
Resolution	Megapixels (e.g. 4MP, 5MP, 8MP/4K)	Higher resolution enables more detail at greater distances
Optical Zoom (PTZ)	Mechanical zoom ratio (e.g. 25x, 32x)	Determines how far the camera can zoom without image degradation
IR Illumination Distance	Maximum effective range of built-in IR LEDs (e.g. 30 m, 150 m)	Determines usable night vision range
DORI Distance	Detect / Observe / Recognise / Identify distances per EN-62676-4	Standardised measure of what the camera can resolve at a given range
WDR (Wide Dynamic Range)	Ability to handle high-contrast scenes (e.g. 120 dB)	Critical for entrances, car parks, and backlit environments
Protection Rating	IP rating (dust/water) and IK rating (impact resistance)	Determines suitability for outdoor and vandal-prone locations
Power Supply	PoE, PoE+, 12VDC, 24VAC	Affects cabling design and infrastructure requirements
Video Compression	H.265+, H.265, H.264+, H.264	H.265+ reduces storage and bandwidth requirements significantly
ONVIF Profile	Interoperability standard (Profile S, G, T)	Ensures compatibility with third-party NVRs and VMS platforms

For full specifications on individual Dahua models, view our Dahua IP camera range or contact our team for a project specification review.
